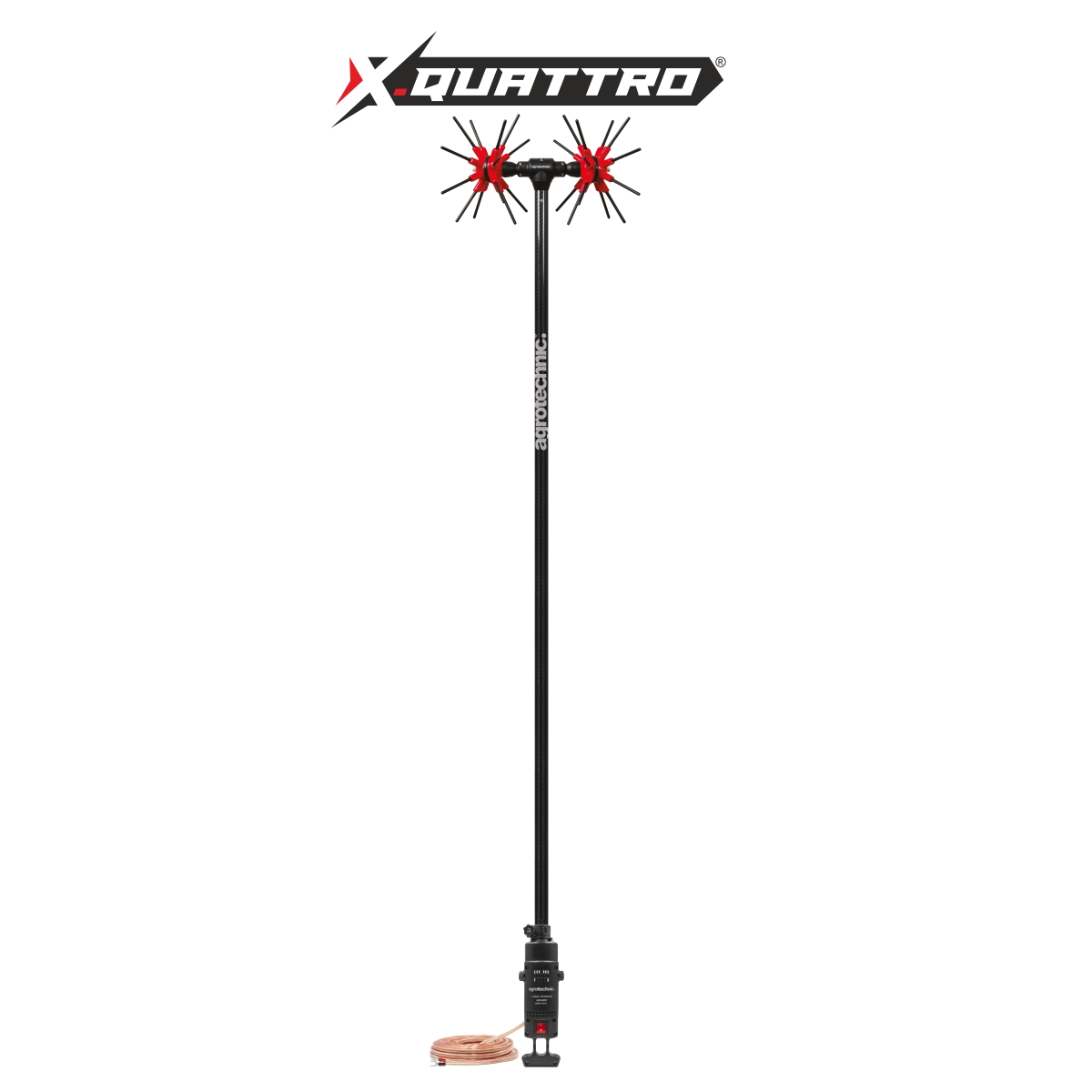

X.QUATTRO CF

AGROTECHNIC XQUATTRO CF OLIVE HARVESTER
agrotechnic_motor_mk2_en
agrotechnic_xquattro_cf_mk2

X.QUATTRO CF

€285,00

Our patented olive harvester with 4-Dimentional motion and carbon fiber bars.

Carbon fiber tube

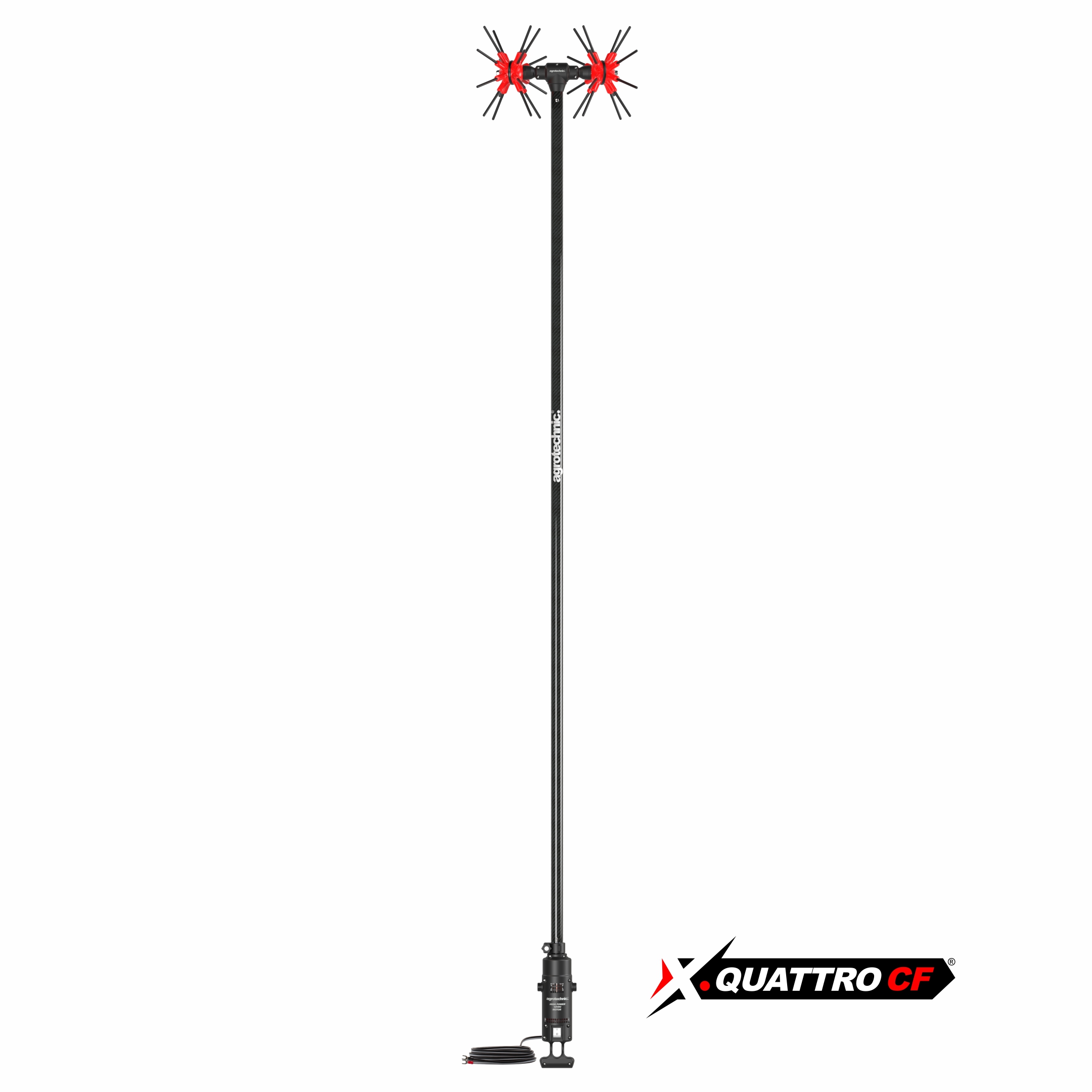

Total length 2.4 Meters

Includes 14m cable with Y type terminals.

Category:

Related products

Our patented olive harvester with X.QUATTRO 4-Dimentional motion and carbon fiber bars.

Carbon Fiber tube

Total length 2.4 Meters

Includes 14m cable with Y type terminals.

agrotechnic xquattro superveloce vibrating

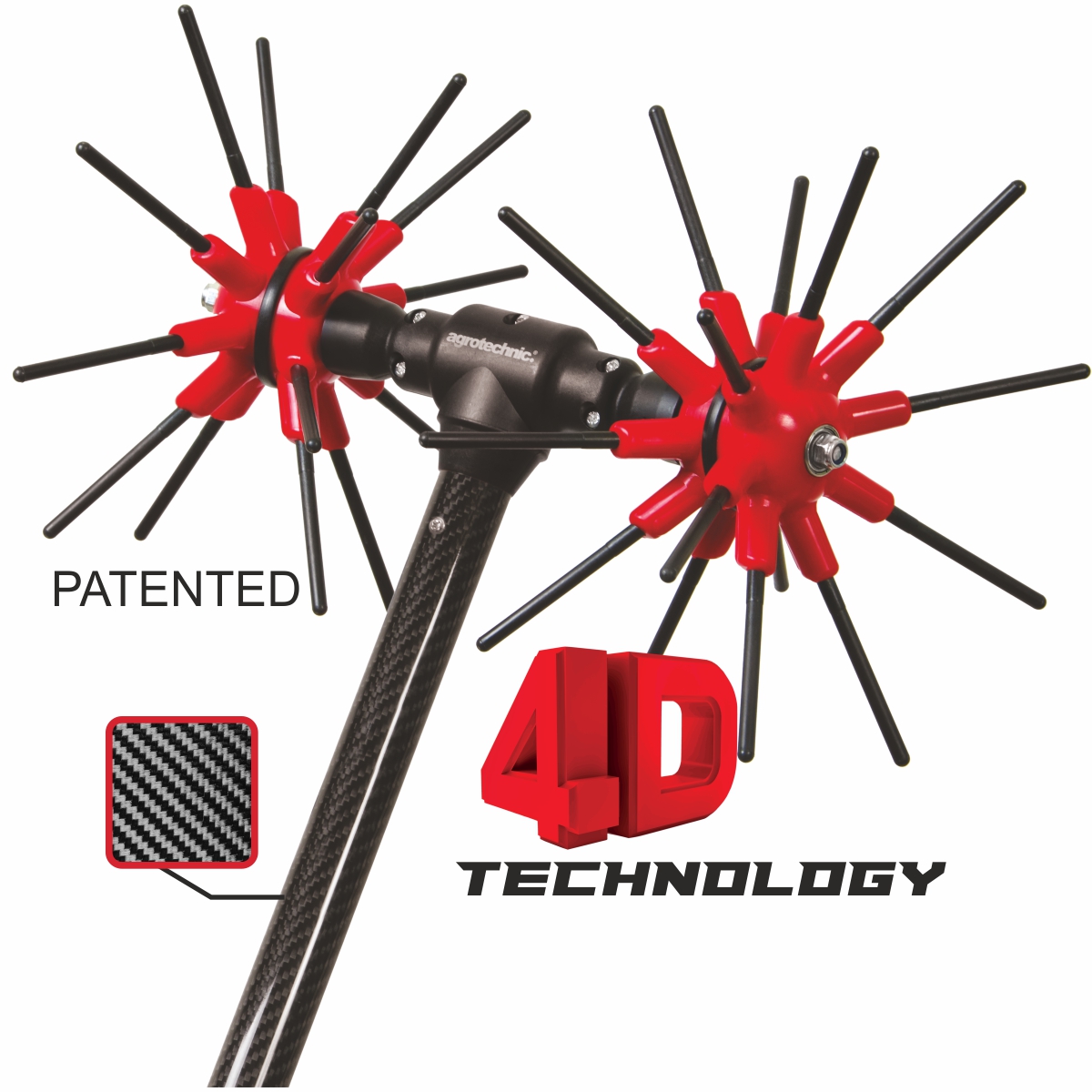

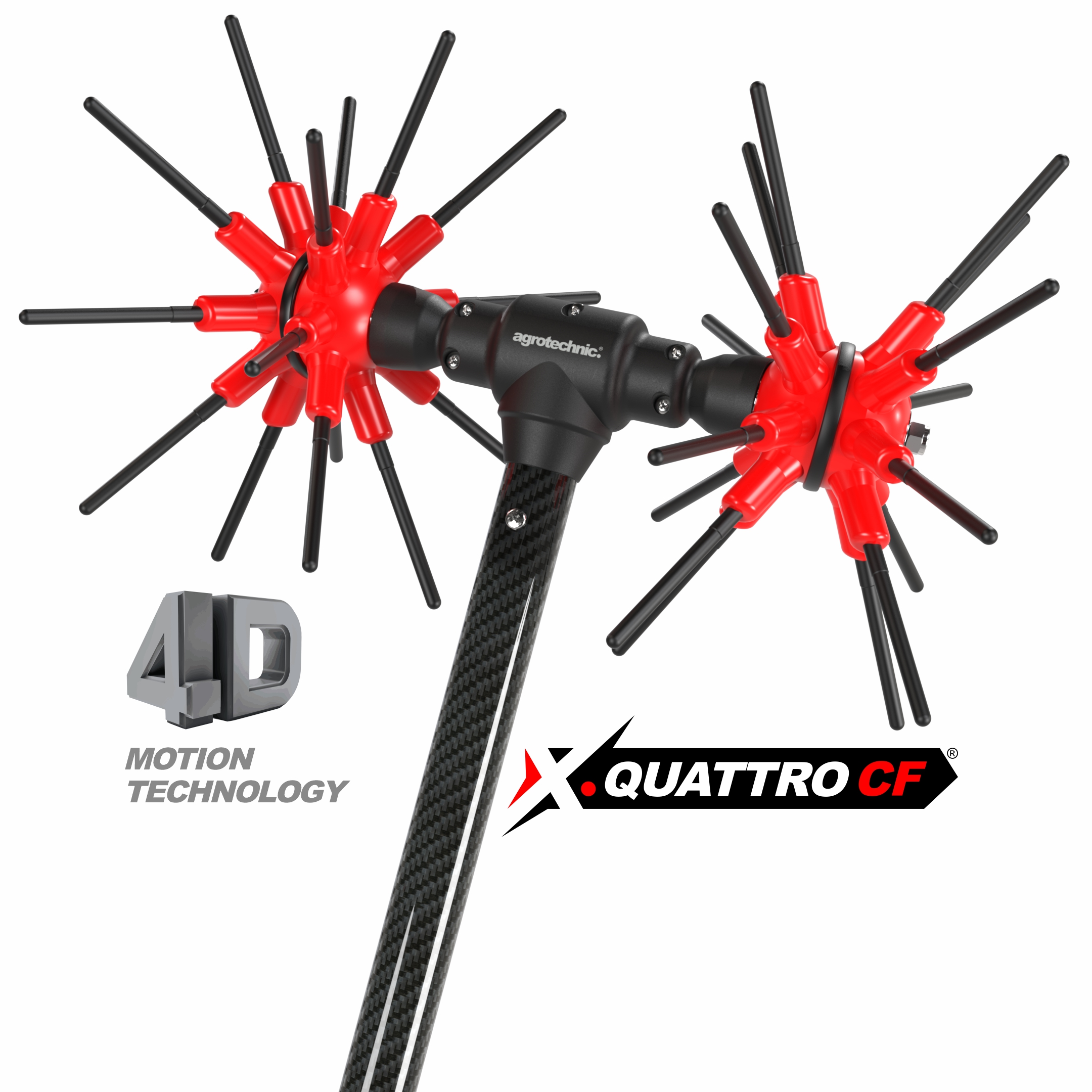

Roto-vibrating motion

The free rotation of the spheres lets it move freely inside the dense branches without damaging the olive tree and olive seeds.

agrotechnic xquattro superveloce elasticity

Elastic bases

The carbon fiber sticks are based on an elastic thermoplastic bases. The elasticity of the bases provide smooth operation. The material of the base is high quality and combines elasticity and durability.

agrotechnic_motor_mk2_new

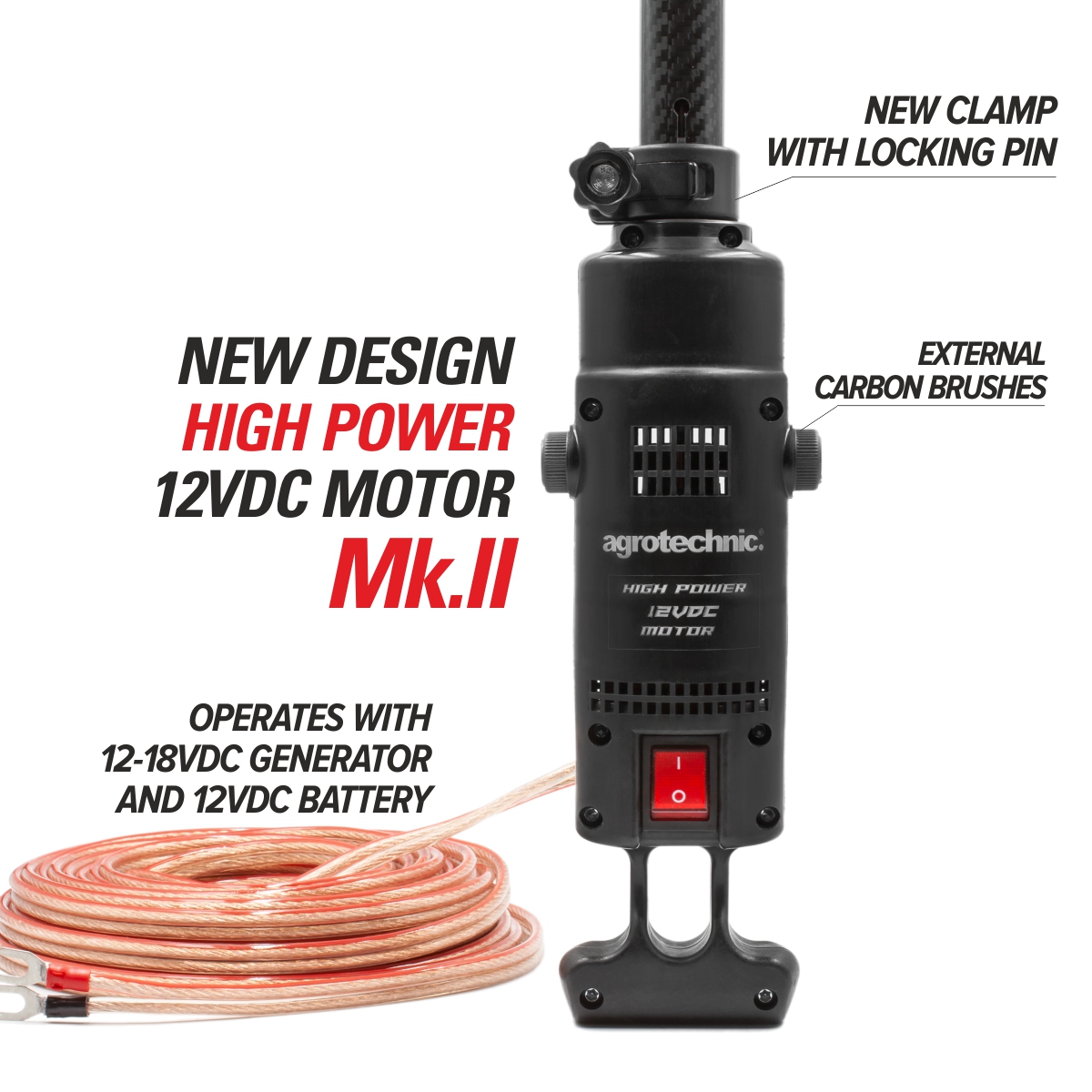

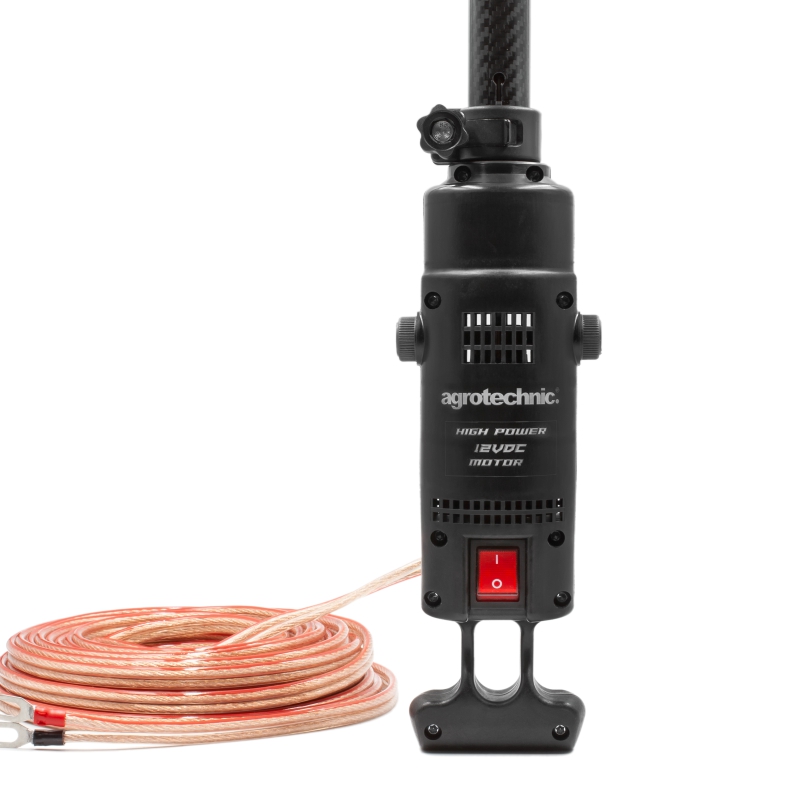

High Power 12VDC electric motor

Made from highquality materials, suitable for long and continious operation, without any need for special maintenance. New clamp with locking pin.

Operates also with a 12VDC battery

Designed to operate with a regular 12VDC car battery giving it 1850RPM and maximum torque at 12VDC. An 80Ah battery will last 8 hours continuous operation.

agrotechnic xquattro superveloce rotation

360° spherical coverage arounf the head.

AGROTECHNIC XQUATTRO SUPERVELOCE 32 BASTONCINI IN CARBONIO

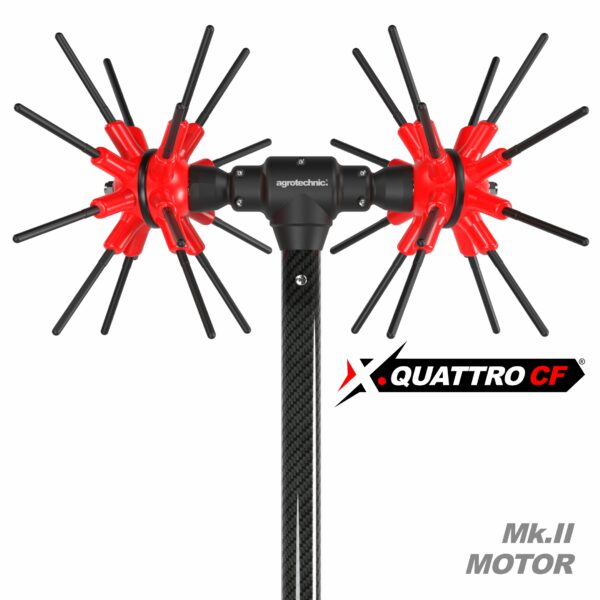

32 carbon fiber sticks

The carbon fiber sticks provide maximum performance in olive trees with dense branches. Due to the small diameter it penetrates easily inside the tree. The smooth surface of the carbon fibers minimizes friction with the tree branches and improves the movement during operation.

EXTENSION CF 1M

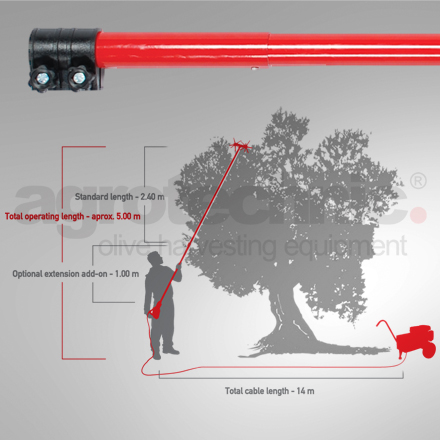

Extension

Optional extention, available: in 0.5 and 1.0 meter. Optional extensions available in 0.5m and 1.0m suitable for the harvest of olive trees over 4 meters.

agrotechnic xquattro superveloce sticks

REPLACEABLE STICKS

Snap Lock - Interchangeable carbon fiber sticks. They change easy and fast without the need of special tools.

Ergonomic design

Antivibrational to the operator. Due to the motion with smooth operation and the elastic material of the sticks, it does not transmit vibrations to the operator. It is lightweight with low center of gravity. Very easy to operate.

2 YEARS WARRANTY

2 Χρόνια εγγύηση

CE

In conformity with the EU directives

Manufactured according to the standards and regulations of the European Union. Carries the CE mark.

VIDEO

Click on the image to start the video
Choose HD for high quality.

Technical specifications:

Description
Type of movement Four-dimentional (4D) vibrating motion. PATENTED
Type of head Elastic thermoplastic spheres carrying 32 carbon fiber sticks. PATENTED
Rpm of the head 1850 rpm @ 12V DC
Motor High power 12V 400 Watt
Output 180/200kg olive seed/hour (minimum)
Initial lenght 2,40m (up to 3,4m with extension)
Weight 2,8kg (without cable)
Extension Optional extension 0.5& 1.0m (with transmition axle)
Cable lenght 14m for generator use, (14m fused with alligator clips for battery use)
Average consumption 10A

Frequently asked questions:

Yes, the x.32 Carbon is designed for use with a regular car battery 12VDC. An 80Ah battery, has operating time of 8 hours continuous operation
x.32 Carbon needs DC 12V to operate, you will find suitable generators in our products
x.32 Carbon needs DC 12V to operate, you will find suitable generators in our products
The elastic spheres wear out evenly with the passing of the olive harvesting periods. The frequency of replacement depends on the type of the olive trees and the time period of harvesting. The average frequency is 4-5 years. They change without special tools.
Yes, you can upgrade to x.32 by changing only the elastic semispheres, all other parts remain the same. The conversions is very easy and no special tools are required
