X.NEXUS FX

€380,00

Super Lightweight 2.2Kg, Easy to operate.
Four Dimensional motion 4D with 32 elastic sticks.
NEXUS® Brushless Motor 12V – 2.500.
Developed for professional operation with a 12V battery.
Carbon tube and internal transmission
Speed control with micro-adjust.
Very friendly to olive tree and the operator
Total machine length – 2.4m. (2.9/3.15/3.4m with optional extension).
Minimum noise and vibrations.
Includes 10m cable, battery kit with alligator clips for car battery and fuse holder with fuse.

VIBRATING MOTION 2.500 BPM

Total coverage around the head, transmits pulses to the tree in all directions.

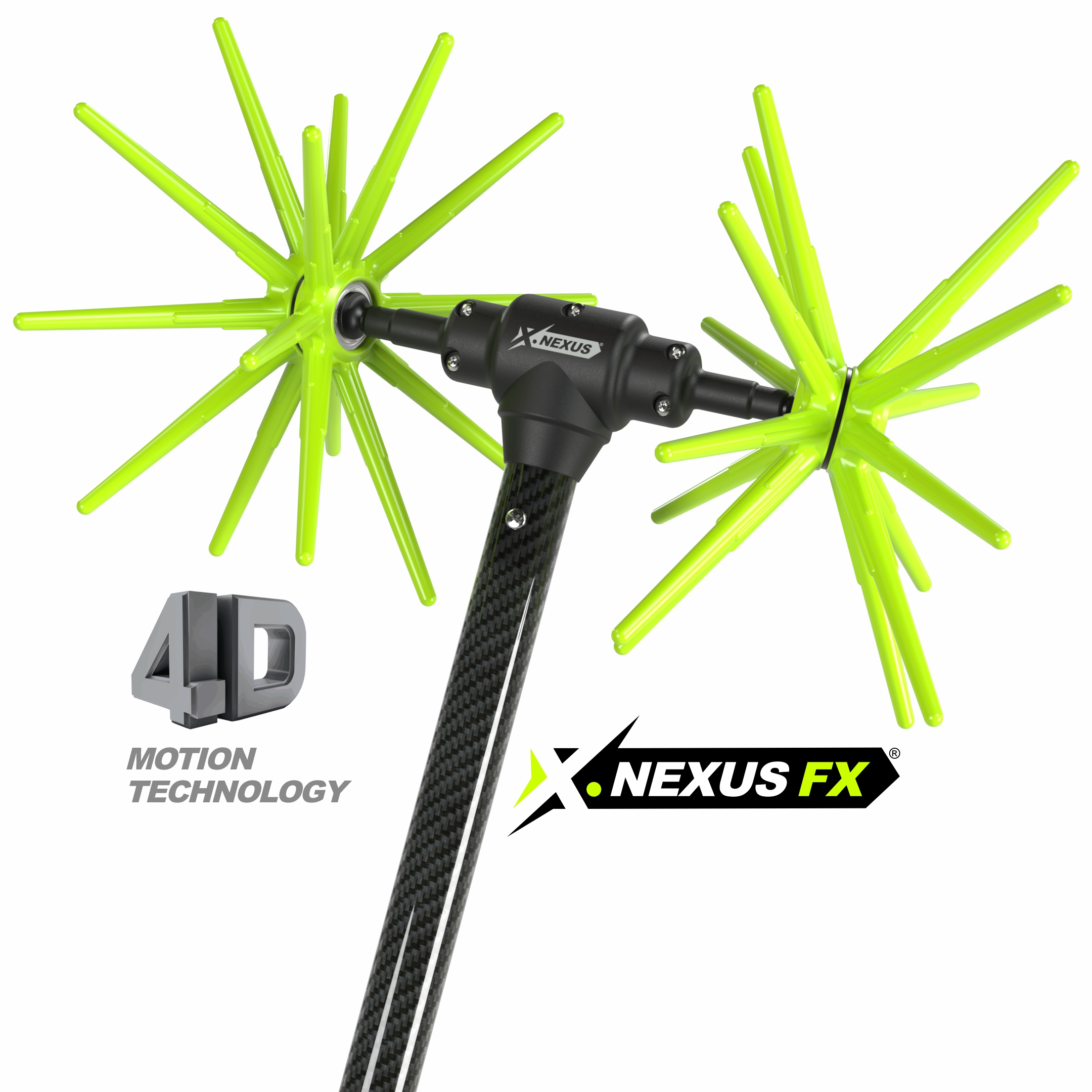

X.NEXUS MECHANISM 4D TECHNOLOGY

The independent movement of the semispheres, allows it to penetrate into the densest parts of the tree with ease. Very friendly to the olive tree

NEXUS BRUSHLESS MOTOR 12V

2.500 RPM at 12V Suitable for long continuous operation

DIRECT DRIVE MOTOR

Motor without gearbox. Maintenance free.

32 ELASTIC STICKS

Flexible material. Very friendly to the olive tree.

SPEED CONTROL

Potentiometer with micro-adjust for precise control of the speed.

CARBON FIBER TUBE AND TRANSMISSION

Ultra durable and lightweight made from high quality carbon fibers.

LOCKING CLAMP

Holds the motor with the tube with a locking pin.

EXTENSIBLE

Optional carbon fiber extensions, available in lengths of 0.5m-0.75m-1.0m

ERGONOMIC DESIGN

Antivibrational to the operator. Due to the motion with smooth operation and the elastic material of the sticks, it does not transmit vibrations to the operator. It is lightweight with low center of gravity. Very easy to operate.

12V BATTERY OPERATION

Suggested 12V LiFePo4 Battery 60-80Ah for 6-8 hour continuous operation.

2 YEAR WARRANTY

Manufactured according to the standards and regulations of the European Union. Carries the CE mark.

TECHNICAL SPECIFICATIONS:

Description
Type of movement	Roto-vibrating motion with 4D technology (independent movement of the semispherers)
Type of head	X.NEXUS 4D consists of elastic thermoplastic spheres carrying 32 elastic sticks
Rpm of the head	2.500 rpm @ 12V with speed control
Motor	NEXUS brushless motor 12V 800 Watt
Output	260/330kg olive seed/hour (minimum)
Initial length	2.40m (up to 2.9-3.4m with extension)
Weight	2.2kg (without cable)
Extension	Optional extension 0.50m, 0.75m or 1.0m (with transmition shaft)
Cable length	10m with fuse and alligator clips for battery use
Average consumption	8.5A @ 12V - 2.500 Rpm (at max. speed)
Noise levels	54dB @ operator level

FREQUENTLY ASKED QUESTIONS

Q) Can the X.NEXUS FX operate with a car battery?

Yes, the X.NEXUS FX is designed for professional use with a car battery 12V. Suggested 12V LiFePo4 80-100Ah battery for 6-8 hours of continuous operation.

Q) Which are the parts that need replacement parts of the olive harvester and how often do they need replacement?

The elastic spheres/ carbon sticks wear out evenly with the passing of the olive harvesting periods. The frequency of replacement depends on the type of the olive trees and the time period of harvesting. The average frequency is 3-4 years. They change without special tools.

Q) Does the machine need maintenance?

The machine doesnt need special maintenance. Apply grease spray externaly to the rotating parts of the head before the operation of the day. Every 100 Hours lubricate the roller guides of the transmission shaft.
