X.QUATTRO FX

agrotechnic_xquattro_fx_mk2_en
agrotechnic_mk2_motor_el
agrotechnic_xquattro_fx_mk2_dia_en
agrotechnic_xqfx_mk2_full

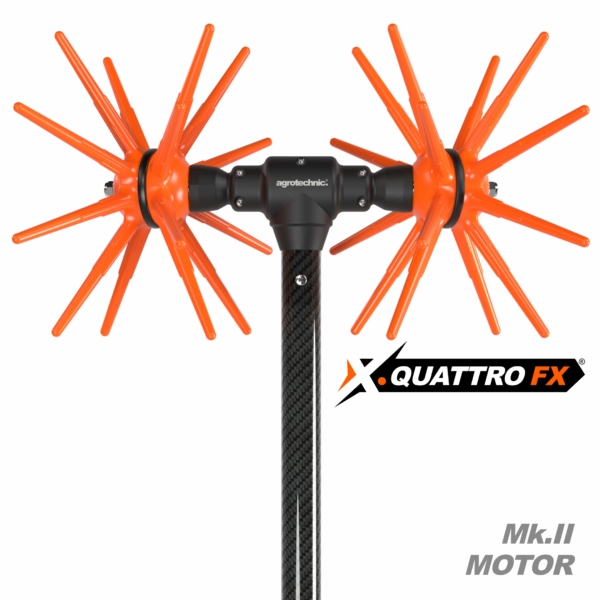

X.QUATTRO FX

€310,00

  • Four Dimensional 4D movement with 32 elastic sticks.
  • Mk2 Motor 12-16V.
  • Developed for professional operation with generator/alternator/transformer 12-16V.
  • Carbon tube and internal transmission
  • Very friendly to olive tree and the operator

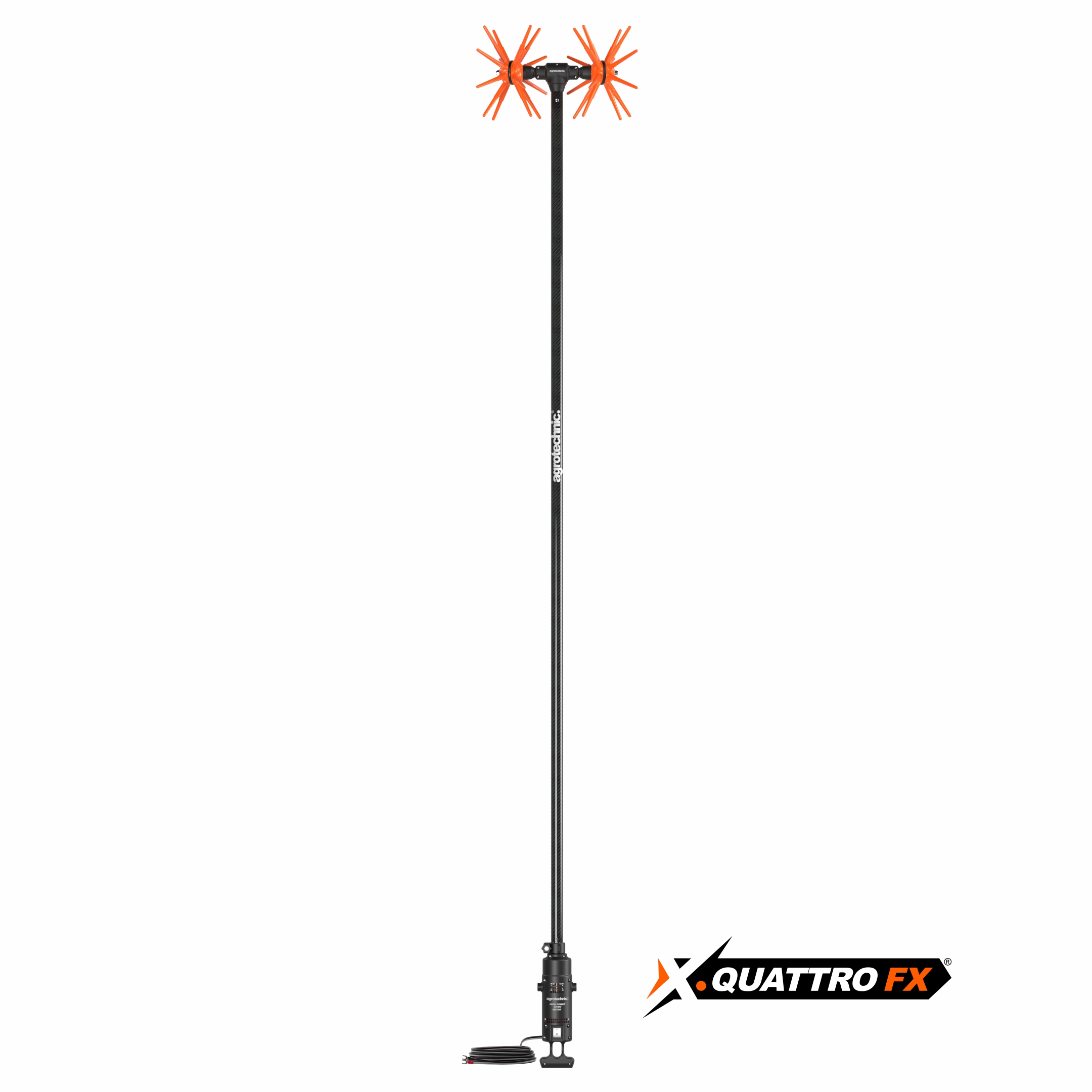

  • Total machine length – 2.4m. (2.9/3.15/3.4m with optional extension).
  • Lightweight 2.6Kg with balance weight distribution (motor at the bottom) Easy to operate.
  • Minimum noise and vibrations.
  • Includes 14m cable with Y terminals for connection with generator/alternator/transformer.
agrotechnic_xquattro_fx_mk2_ur

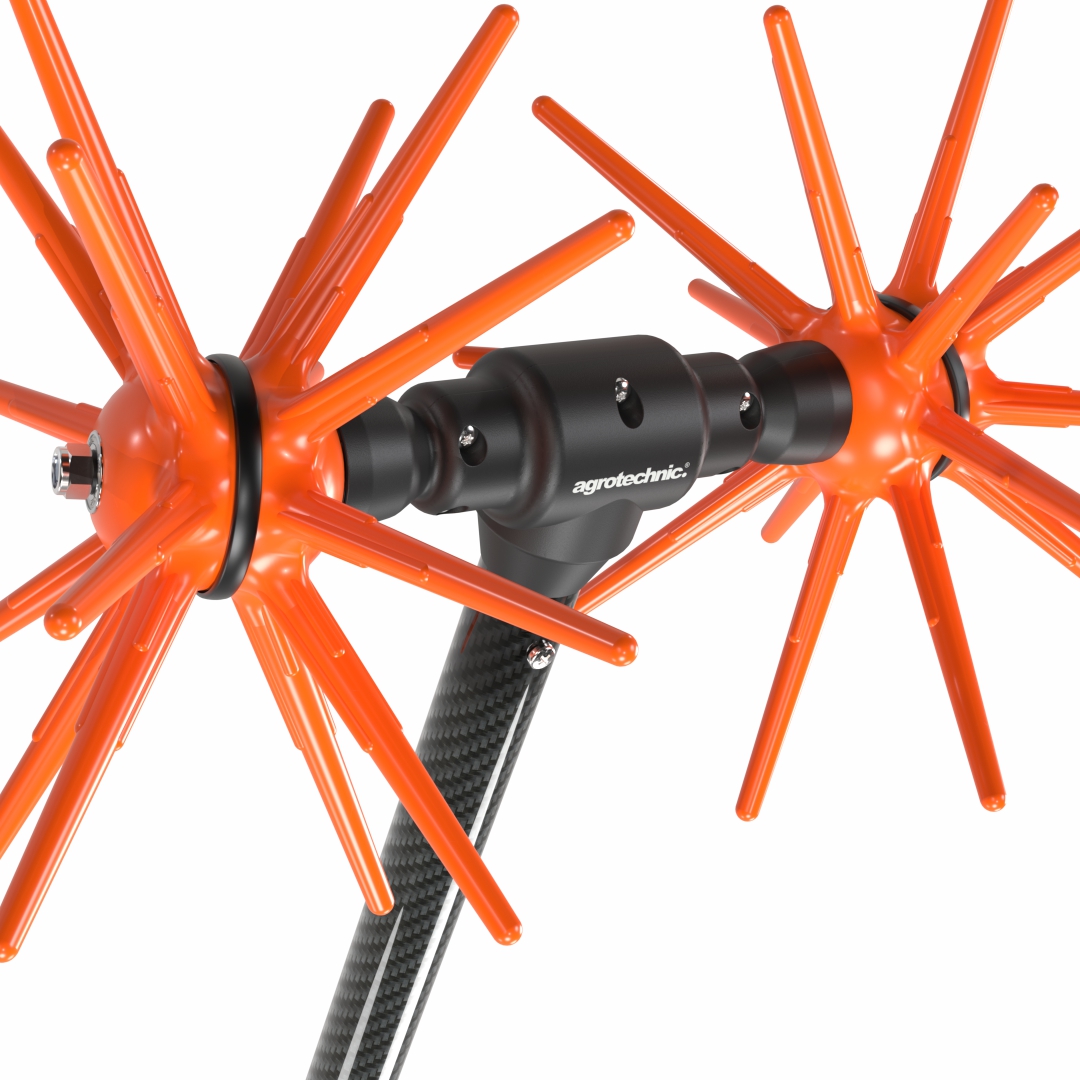

VIBRATING MOTION 2.500 BPM

Total coverage around the head, transmits pulses to the tree in all directions.
agrotechnic_xquattro__fx_mk2_4d

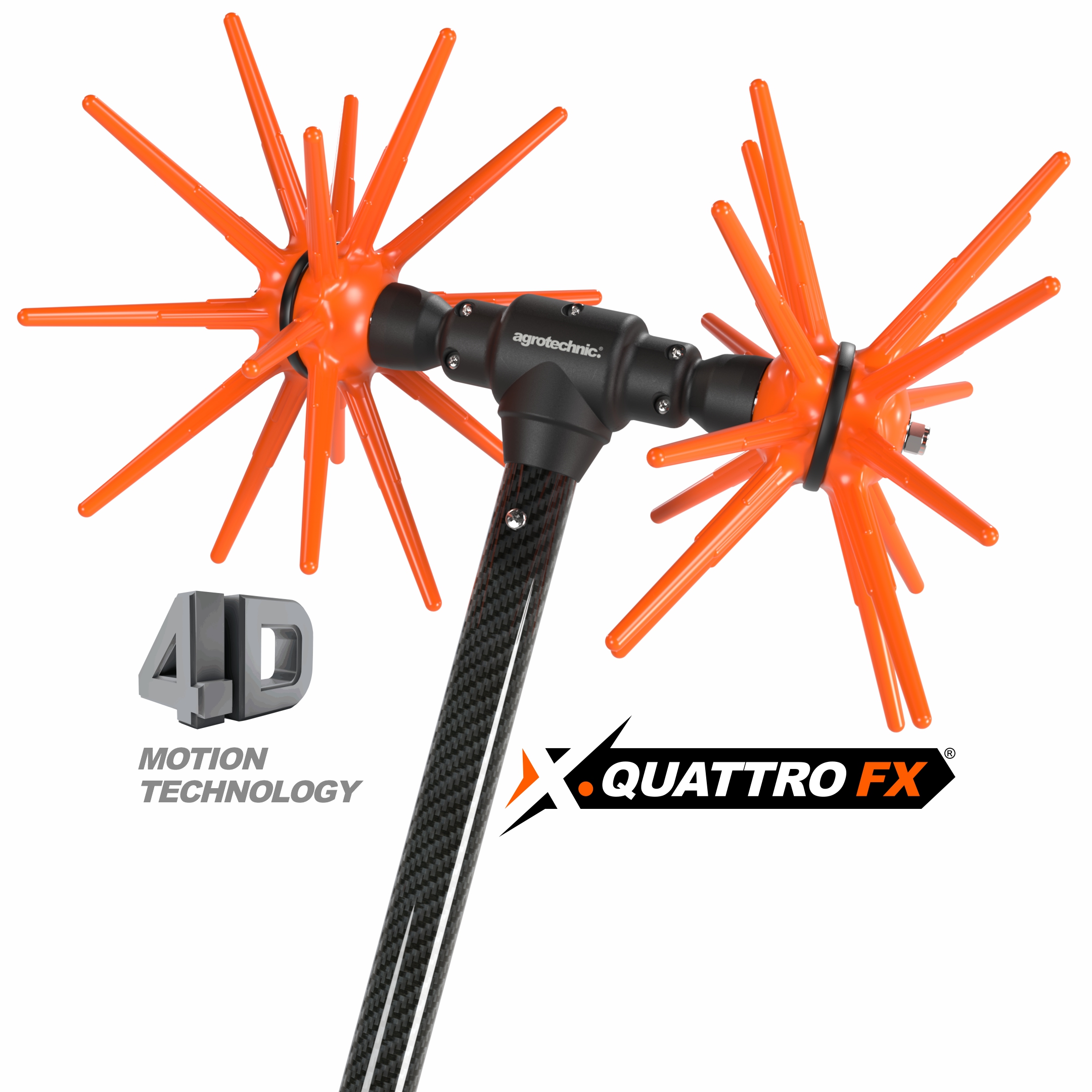

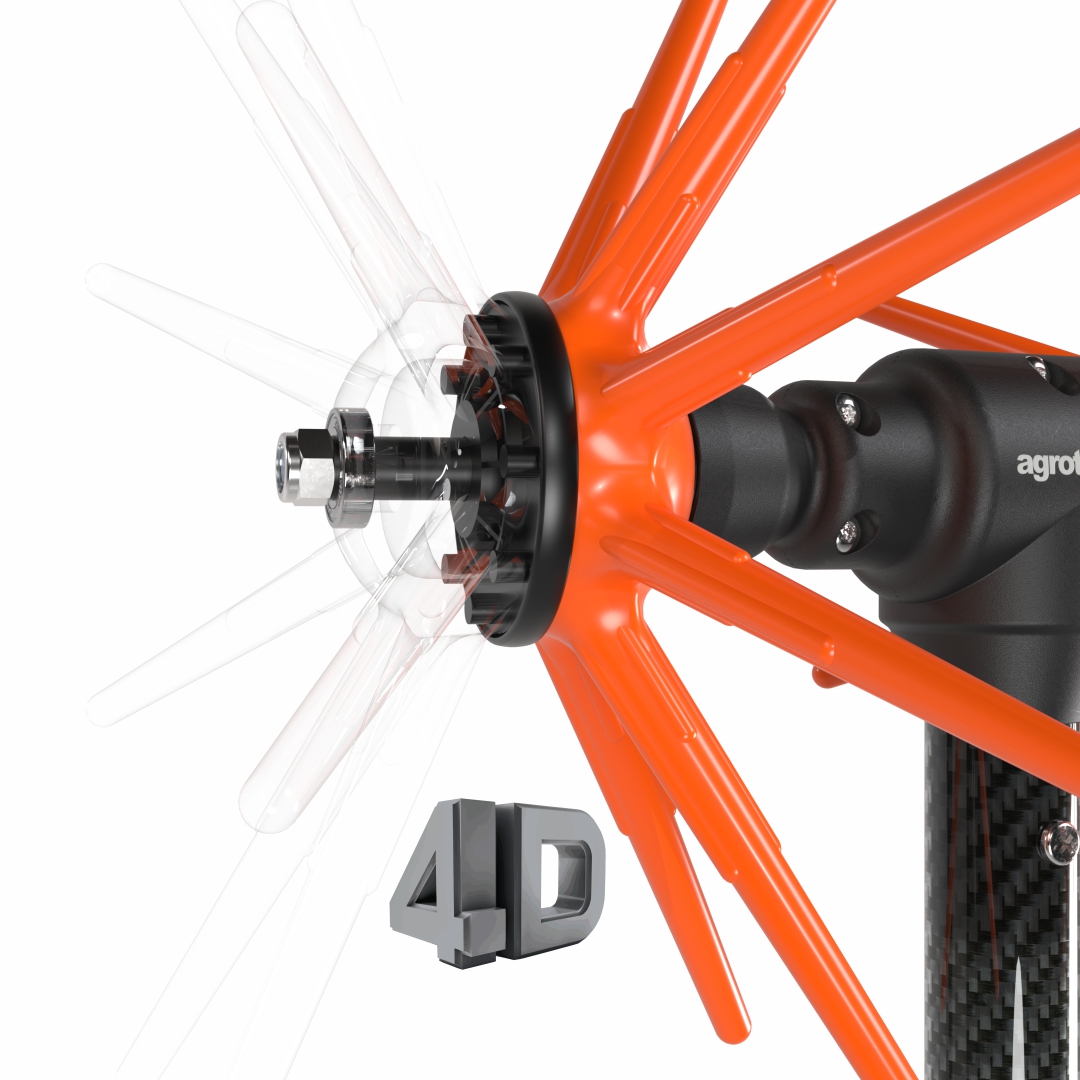

X.QUATTRO MECHANISM 4D TECHNOLOGY

The independent movement of the semispheres, allows it to penetrate into the densest parts of the tree with ease. Very friendly to the olive tree.
agrotechnic_mk2

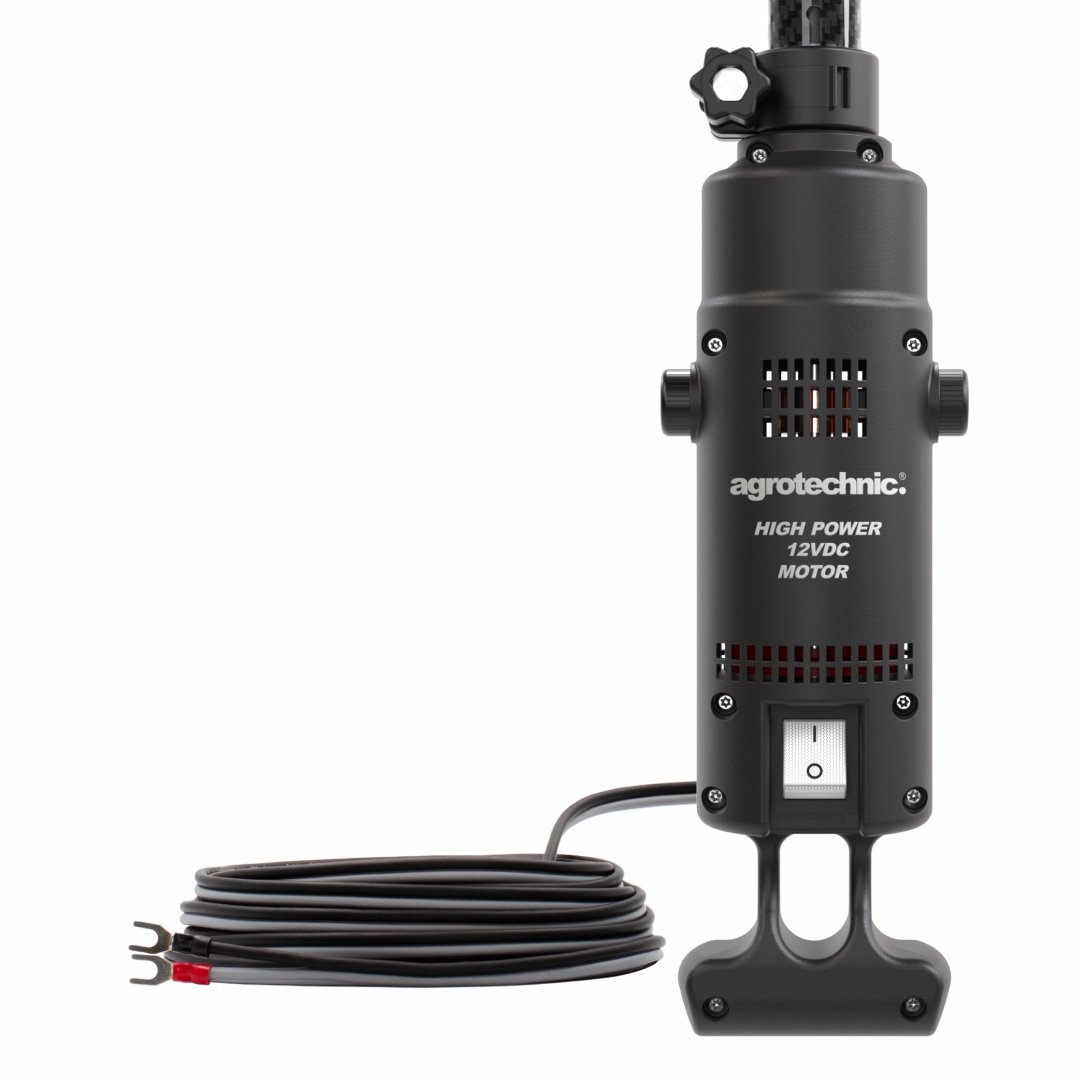

Mk2 MOTOR 12-16V

1850 -2000 RPM at 12V-16V Suitable for long continuous operation
agrotechnic_mk2_gearbox

HIGH TORQUE GEARBOX

High quality and durability
fx_sticks

32 ELASTIC STICKS

Flexible material. Very friendly to the olive tree.
external_carbon_brushes

EXTERNAL CARBON BRUSHES

Easily replaceable
carbon_tube_internal

CARBON FIBER TUBE AND TRANSMISSION

Ultra durable and lightweight made from high quality carbon fibers.
clamp_lock

LOCKING CLAMP

Holds the motor with the tube with a locking pin.
EXTENSION-CF-1M

EXTENSIBLE

Optional carbon fiber extensions, available in lengths of 0.5m-0.75m-1.0m
agrotechnic_olive_harvesting

ERGONOMIC DESIGN

Antivibrational to the operator. Due to the motion with smooth operation and the elastic material of the sticks, it does not transmit vibrations to the operator. It is lightweight with low center of gravity. Very easy to operate.
2 YEARS WARRANTY

2 YEAR WARRANTY

CE

IN CONFORMITY WITH THE EU DIRECTIVES

Manufactured according to the standards and regulations of the European Union. Carries the CE mark.

TECHNICAL SPECIFICATIONS:

Description
Type of movement Roto-vibrating motion with 4D technology (independent movement of the semispherers)
Type of head X.QUATTRO 4D consists of elastic thermoplastic spheres carrying 32 elastic sticks
Rpm of the head 1850-2500 rpm @ 12V-16V
Motor Μκ2 12-16V 400 Watt
Output 230/300kg olive seed/hour (minimum)
Initial length 2.40m (up to 2.9-3.4m with extension)
Weight 2.6kg (without cable)
Extension Optional extension 0.50m, 0.75m or 1.0m (with transmition shaft)
Cable length 14m with Y terminals for connection with generator
Average consumption 10 @ 16V - 2.500 Rpm (at max. speed)
Noise levels 56dB @ operator level
