X.QUATTRO FX SUPERVELOCE

agrotechnic_xquattro_fx_sv_en
agrotechnic_superveloce_motor_el
agrotechnic_xquattro_fx_sv_dia_en
agrotechnic_xqfx_sv_full

X.QUATTRO FX SUPERVELOCE

€420,00

  • Four Dimensional motion 4D with 32 elastic sticks.
  • SUPERVELOCE® Brushless Motor 12V – 2.500.
  • Developed for professional operation with 12V.
  • Carbon tube and internal transmission
  • Speed control with micro-adjust.
  • Very friendly to olive tree and the operator
  • Total machine length – 2.4m. (2.9/3.15/3.4m with optional extension).
  • Lightweight 2.5Kg with balance weight distribution (motor at the bottom) Easy to operate.
  • Minimum noise and vibrations.
  • Includes 14m cable, battery kit with alligator clips for car battery and fuse holder with fuse.
agrotechnic_xquattro_fx_sv_ur

VIBRATING MOTION 2.500 BPM

Total coverage around the head, transmits pulses to the tree in all directions.
agrotechnic_xquattro__fx_sv_4d

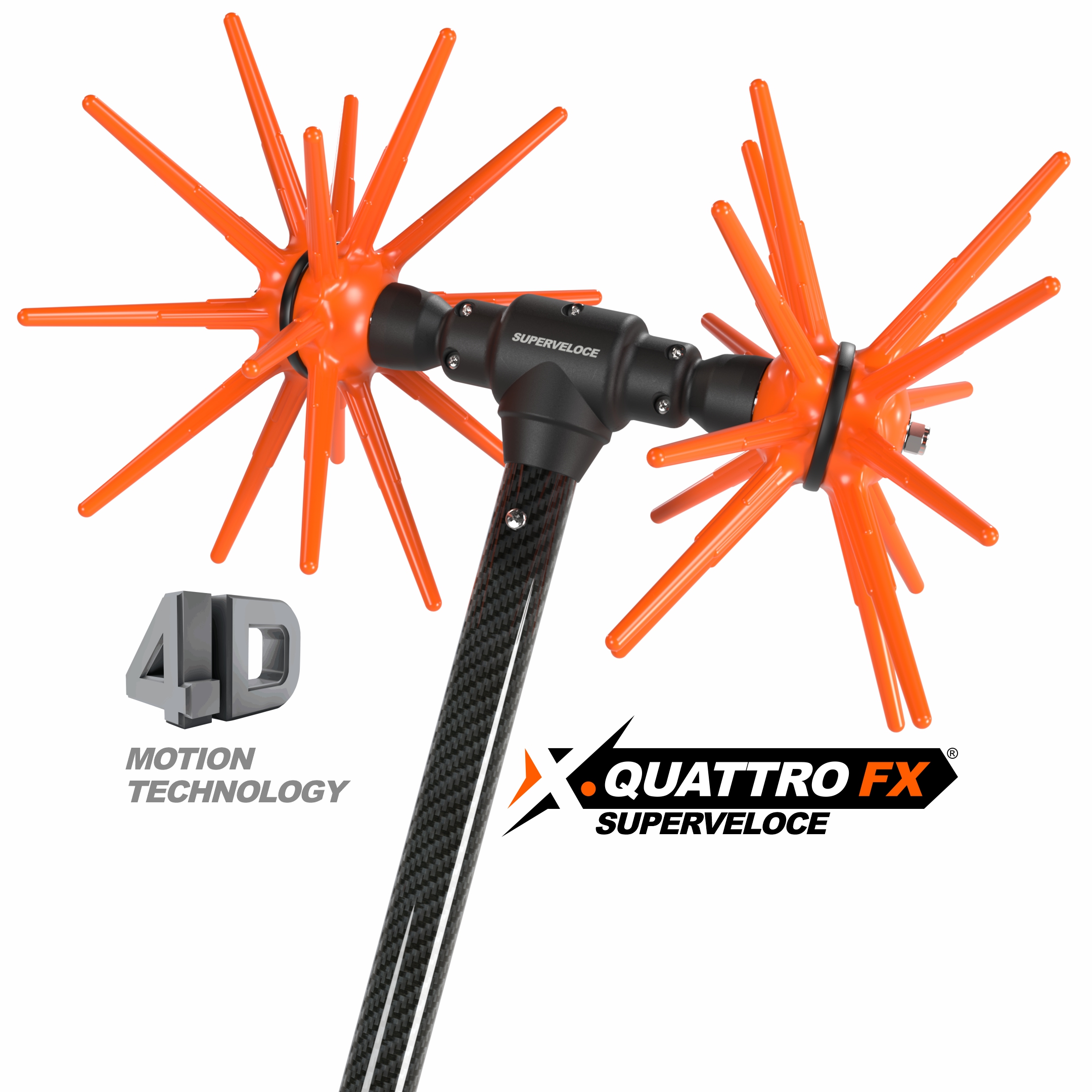

X.QUATTRO MECHANISM 4D TECHNOLOGY

The independent movement of the semispheres, allows it to penetrate into the densest parts of the tree with ease. Very friendly to the olive tree.
agrotechnic_superveloce

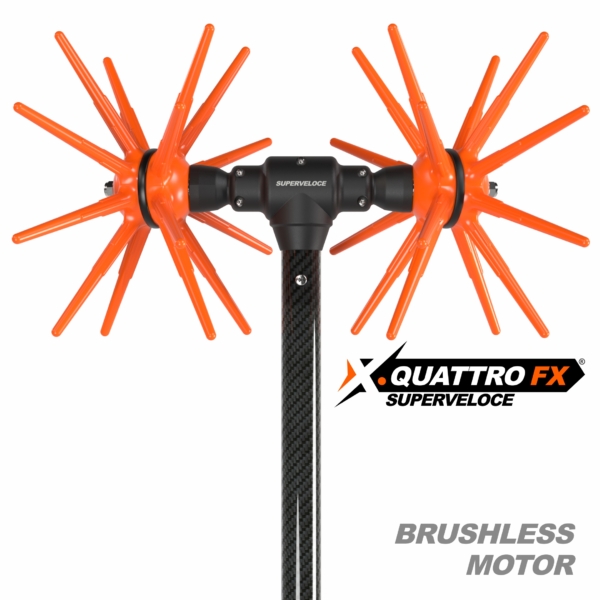

SUPERVELOCE BRUSHLESS MOTOR 12V

2.500 RPM at 12V Suitable for long continuous operation
superveloce_direct_drive

DIRECT DRIVE MOTOR

Motor without gearbox. Maintenance free.
fx_sticks

32 ELASTIC STICKS

Flexible material. Very friendly to the olive tree.
superveloce_speed_control

SPEED CONTROL

Potentiometer with micro-adjust for precise control of the speed.
carbon_tube_internal

CARBON FIBER TUBE AND TRANSMISSION

Ultra durable and lightweight made from high quality carbon fibers.
clamp_lock

LOCKING CLAMP

Holds the motor with the tube with a locking pin.
EXTENSION-CF-1M

EXTENSIBLE

Optional carbon fiber extensions, available in lengths of 0.5m-0.75m-1.0m
agrotechnic_olive_harvesting

ERGONOMIC DESIGN

Antivibrational to the operator. Due to the motion with smooth operation and the elastic material of the sticks, it does not transmit vibrations to the operator. It is lightweight with low center of gravity. Very easy to operate.
2 YEARS WARRANTY

2 YEAR WARRANTY

CE

IN CONFORMITY WITH THE EU DIRECTIVES

Manufactured according to the standards and regulations of the European Union. Carries the CE mark.

TECHNICAL SPECIFICATIONS:

Description
Type of movement Roto-vibrating motion with 4D technology (independent movement of the semispherers)
Type of head X.QUATTRO 4D consists of elastic thermoplastic spheres carrying 32 elastic sticks
Rpm of the head 2.500 rpm @ 12V
Motor SUPERVELOCE brushless motor 12V 1000 Watt
Output 280/350kg olive seed/hour (minimum)
Initial length 2.40m (up to 2.9-3.4m with extension)
Weight 2.5kg (without cable)
Extension Optional extension 0.50m, 0.75m or 1.0m (with transmition shaft)
Cable length 14m with fuse and alligator clips for battery use
Average consumption 9A @ 12V - 2.500 Rpm (at max. speed)
Noise levels 54dB @ operator level
