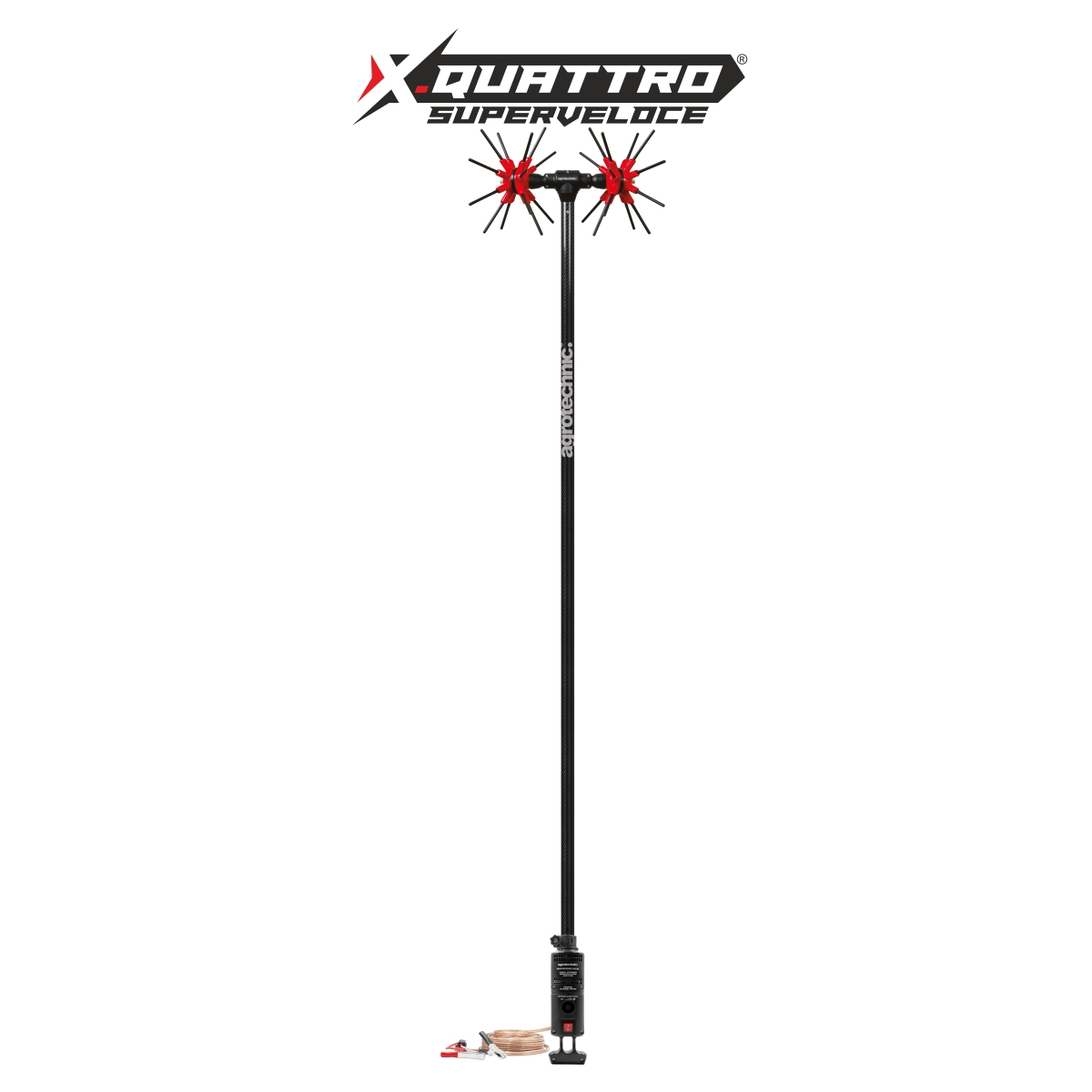

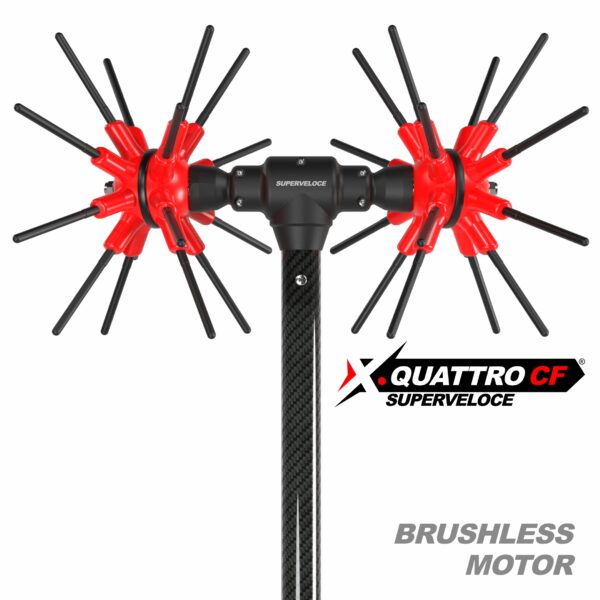

X.QUATTRO CF SUPERVELOCE

390,00

ALL THE SPEED AND POWER YOU WILL EVER NEED.

The fastest, lightest and more efficient olive harvester we have ever made.

Innovative patented vibrating olive harvester with X.QUATTRO® head.

Four Dimensional 4D movement and carbon head.

SUPERVELOCE® Brushless Motor 12VDC – 2.500 RPM

Speed control with micro-adjust.

Developed for professional operation with a regular car battery 12VDC.

Friendly to the environment – 0 emissions

Carbon tube.

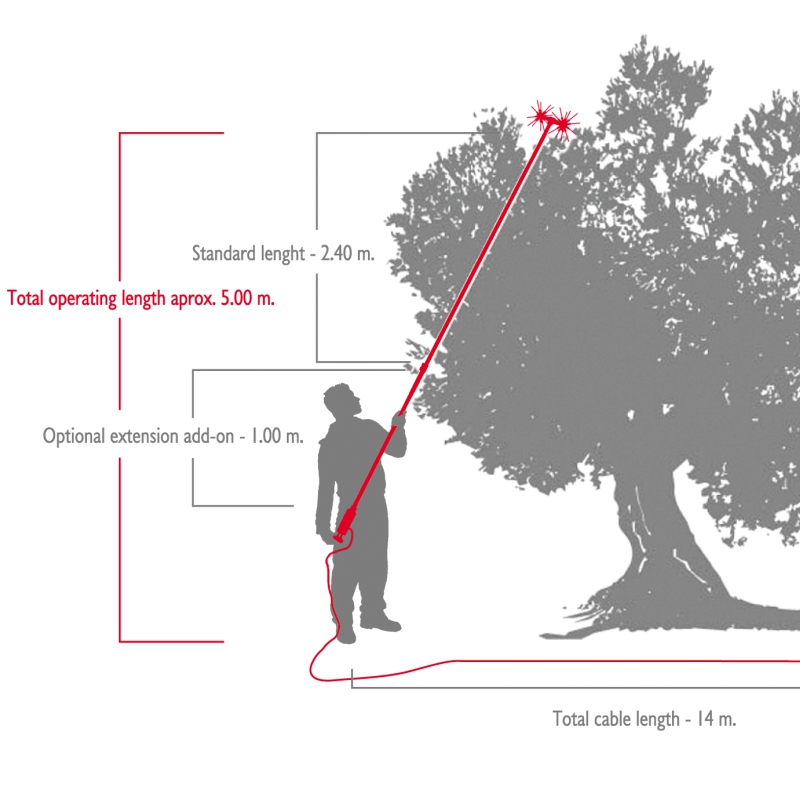

Total machine length – 2.4m. (2.9-3.4 with optional extension).

Super Lightweight – 2.5Kg for easy operation.

Minimum noise and vibrations.

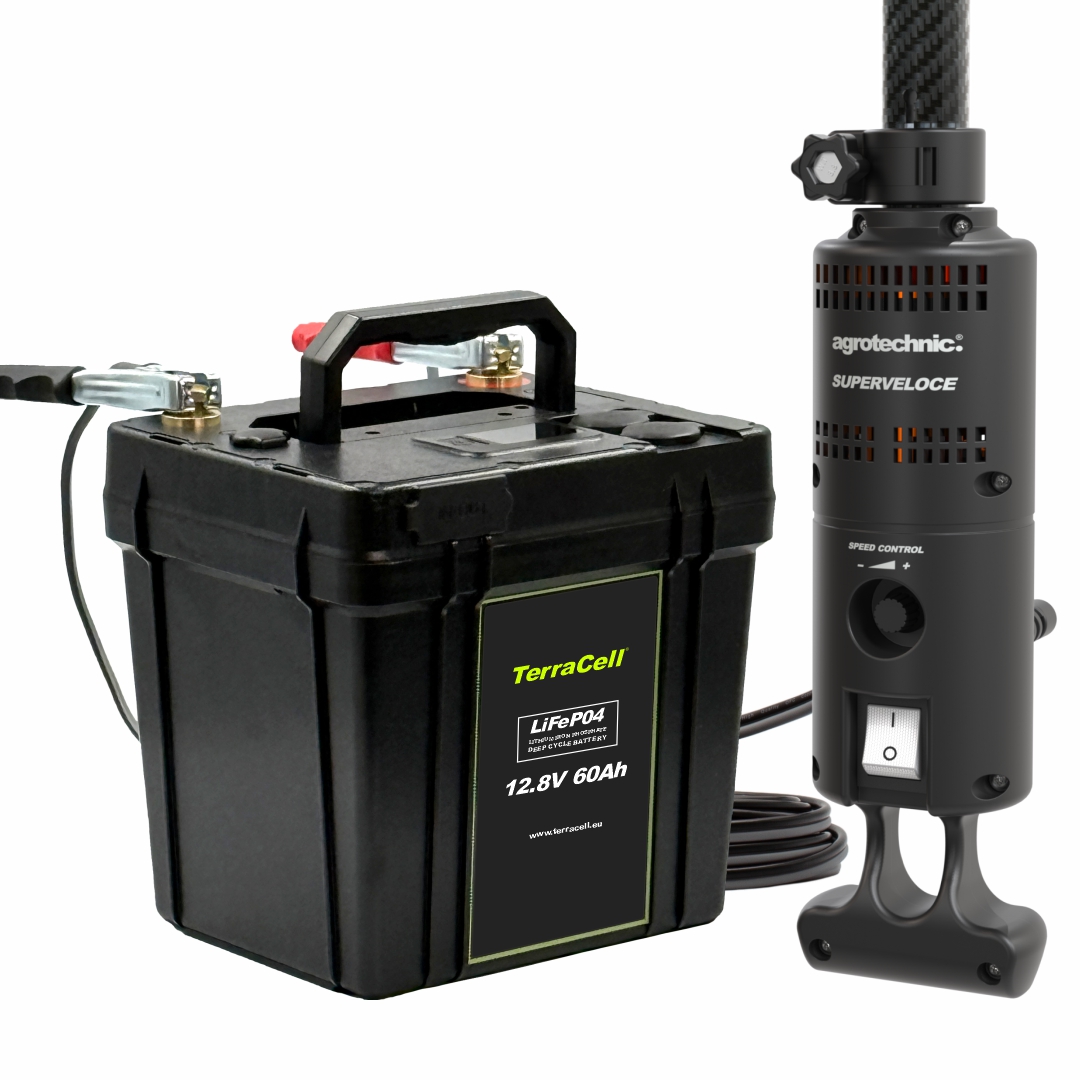

Includes 14m cable, battery kit with alligator clips for car battery and fuse holder with fuse.

agrotechnic_xquattro_cf_sv

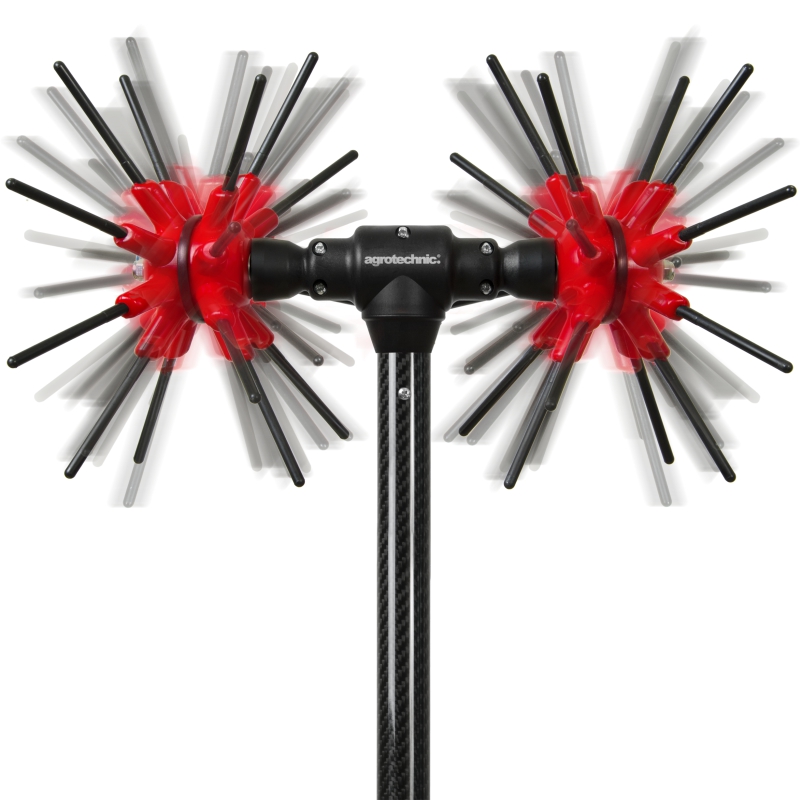

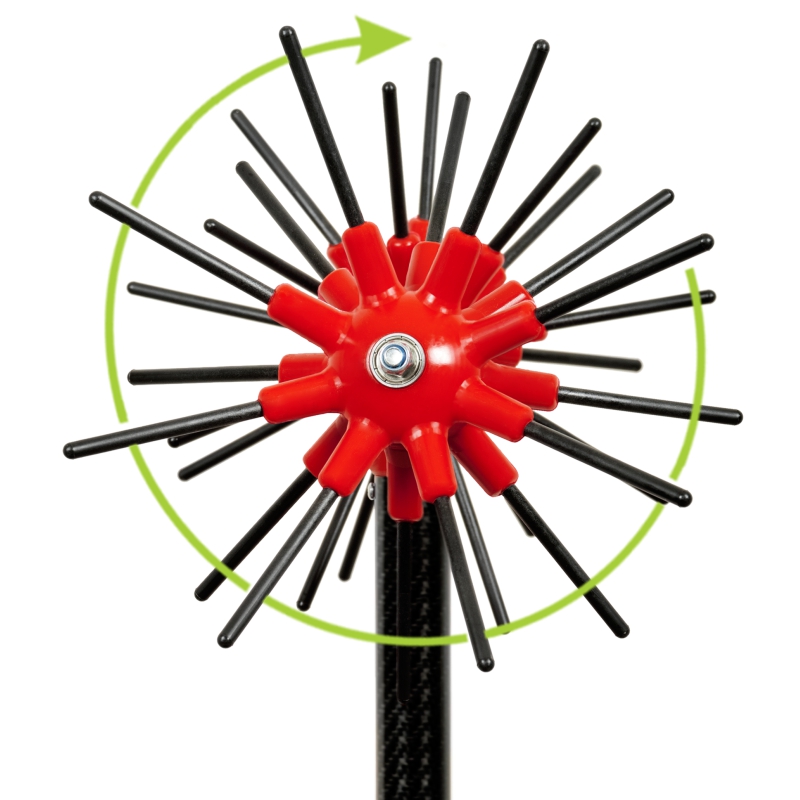

VIBRATING MOTION 2.500 BPM

Total coverage around the head, transmits pulses to the tree in all directions.
agrotechnic_xquattro_sv_4d

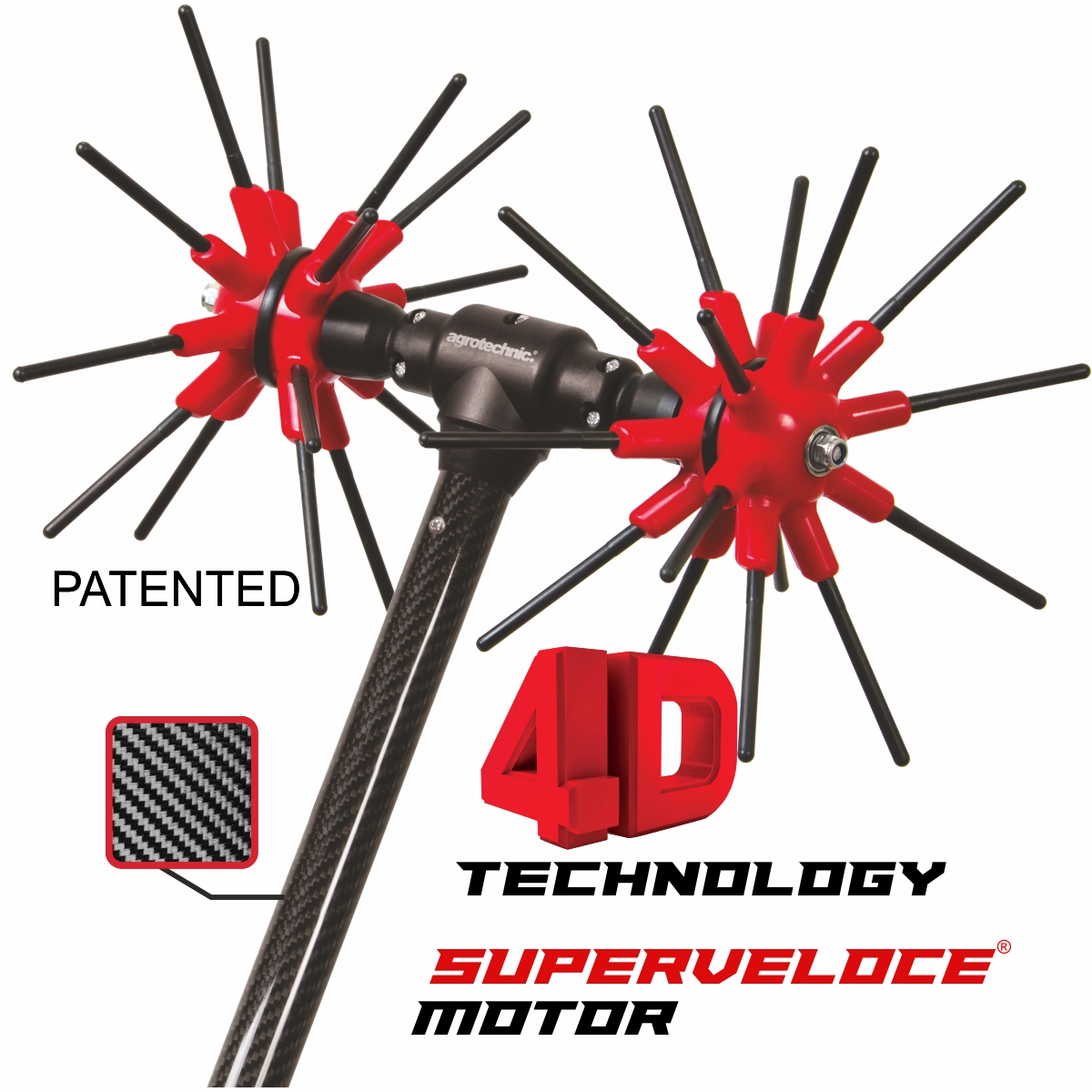

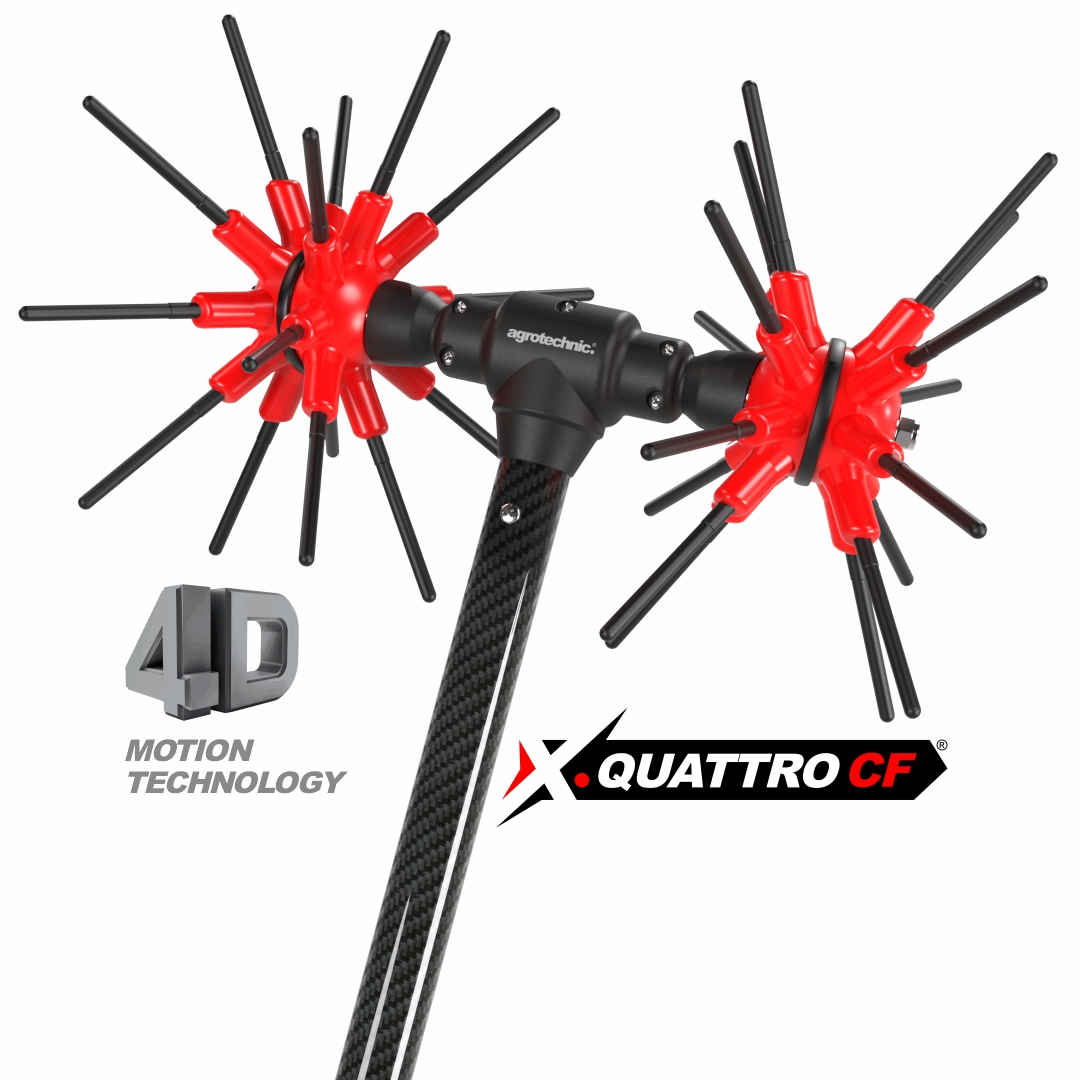

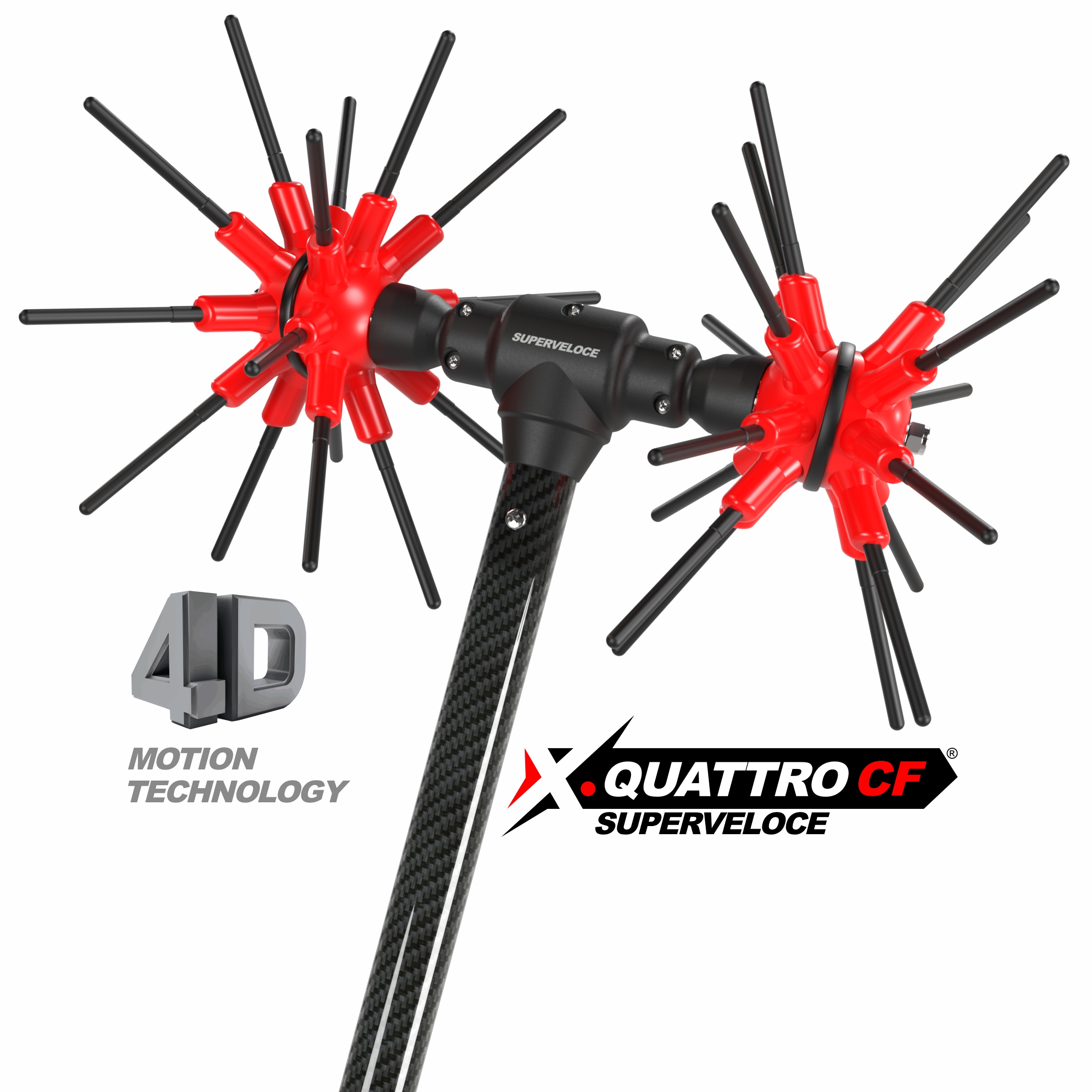

X.QUATTRO MECHANISM 4D TECHNOLOGY

The independent movement of the semispheres, allows it to penetrate into the densest parts of the tree with ease. Very friendly to the olive tree.
agrotechnic_superveloce

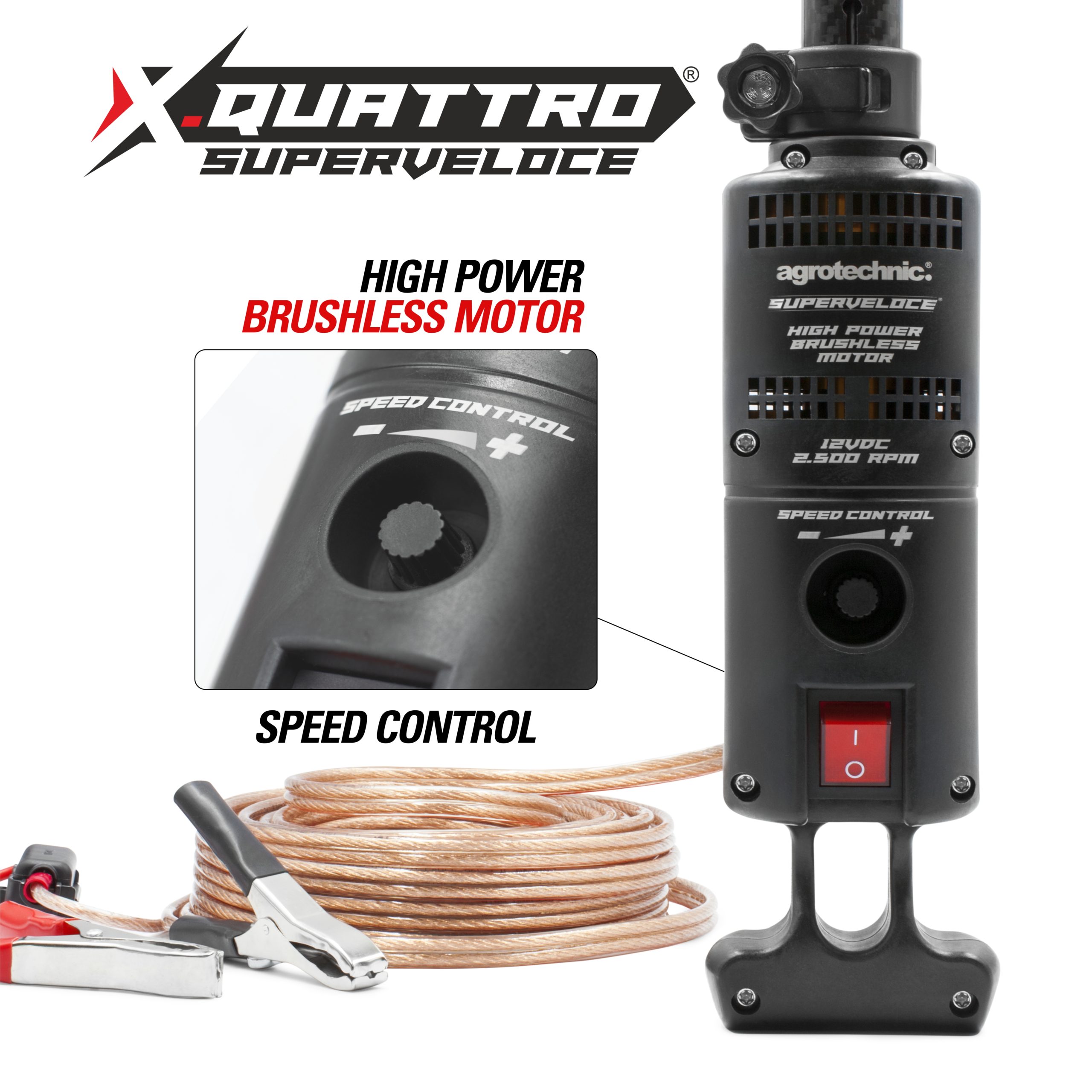

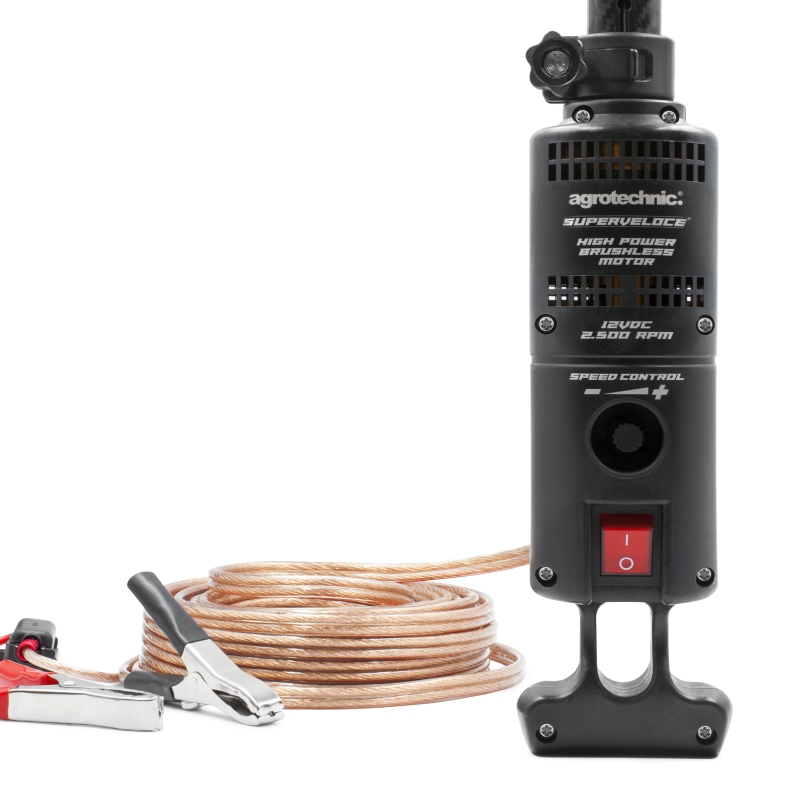

SUPERVELOCE BRUSHLESS MOTOR 12V

2.500 RPM at 12V Suitable for long continuous operation
superveloce_direct_drive

DIRECT DRIVE MOTOR

Motor without gearbox. Maintenance free.
carbon_sticks

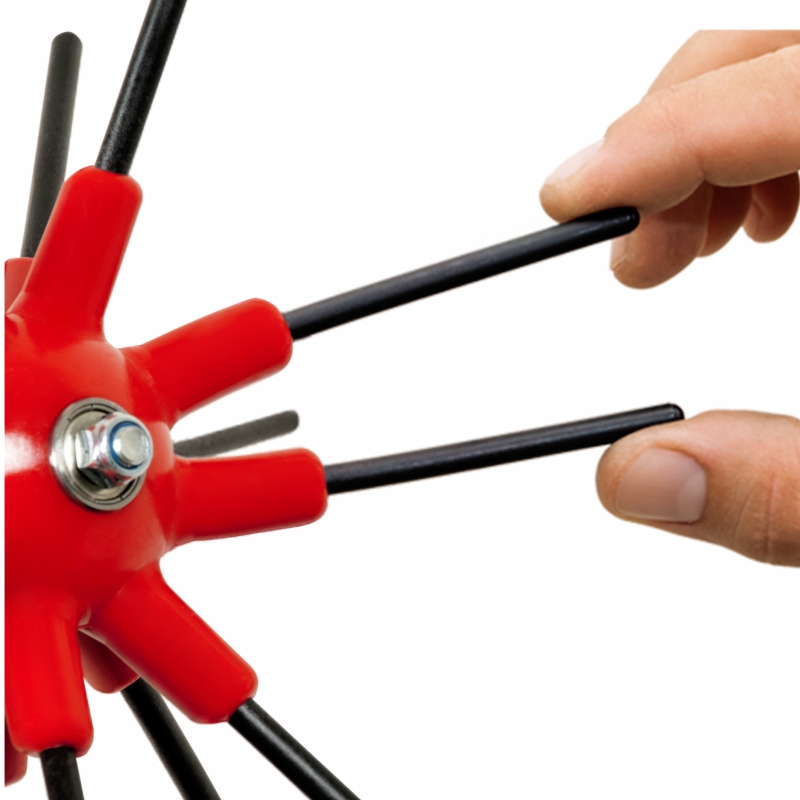

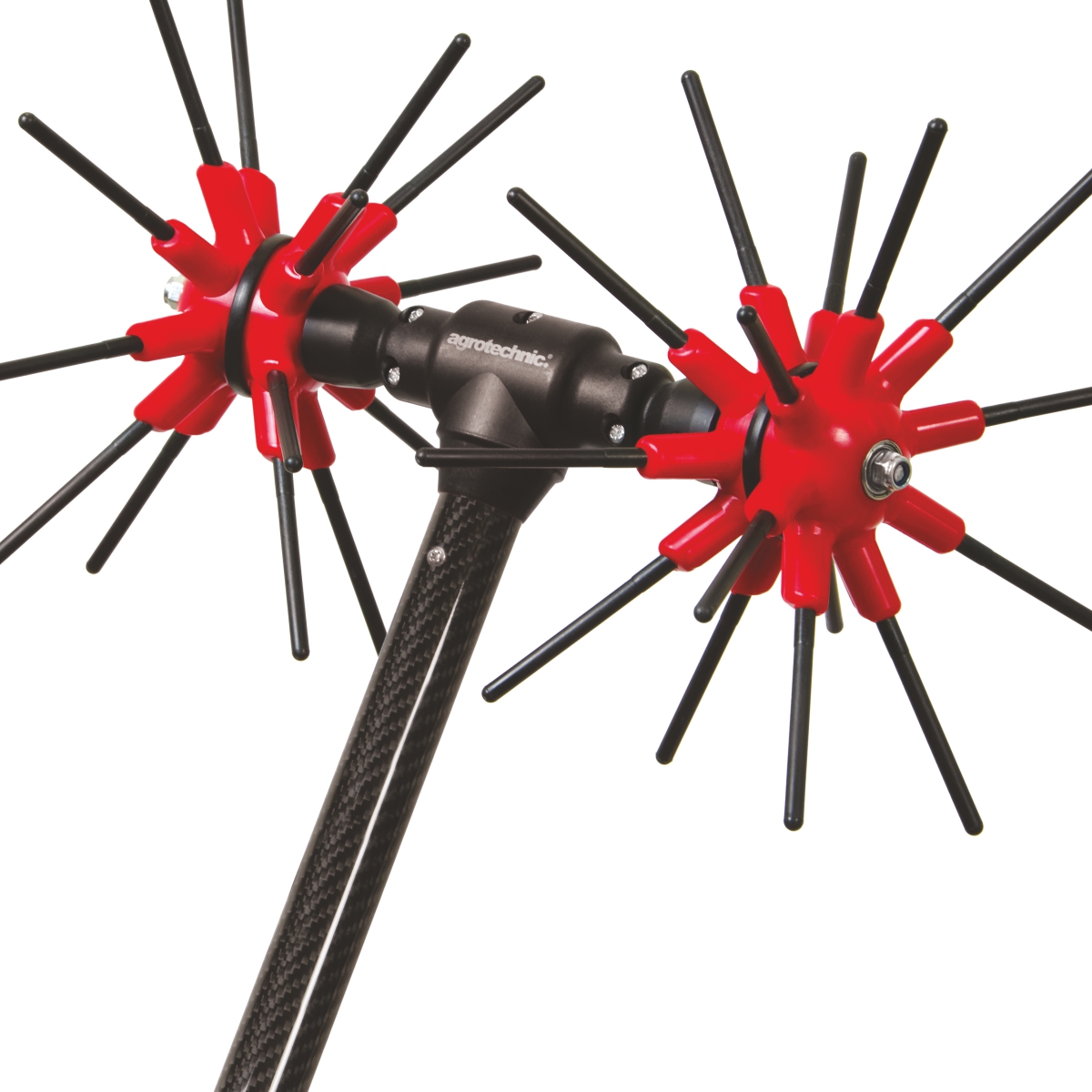

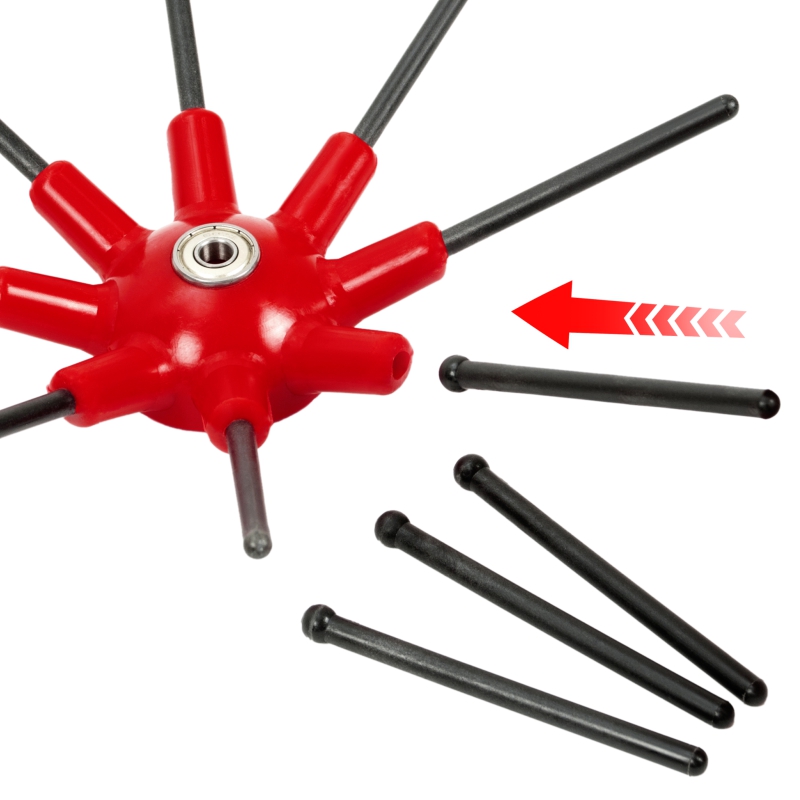

32 CARBON STICKS ON ELASTIC BASES

Combination of rigid and flexible materials SnapLock - Easy to replace
superveloce_speed_control

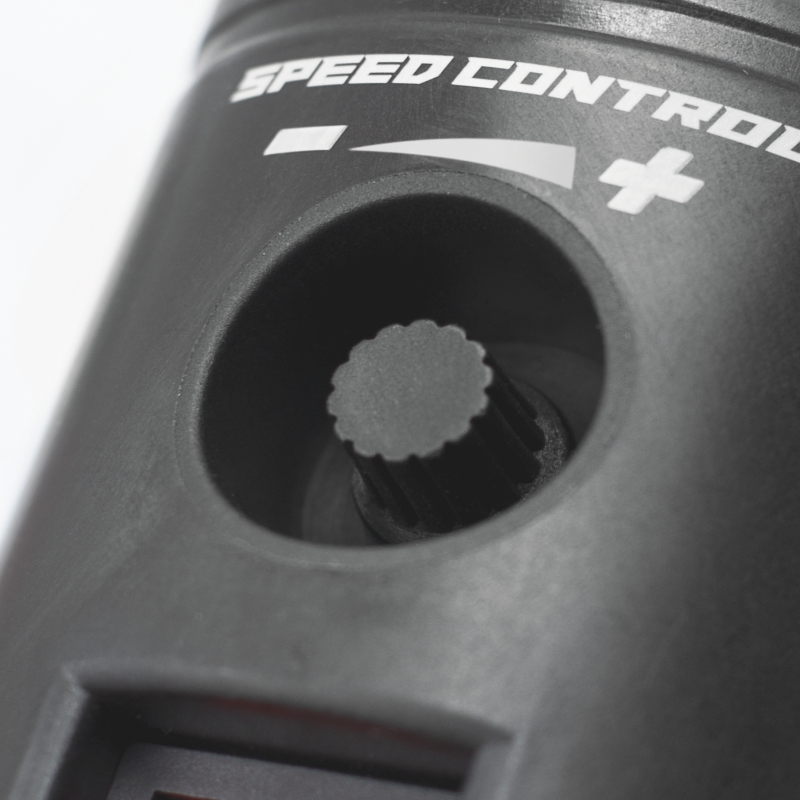

SPEED CONTROL

Potentiometer with micro-adjust for precise control of the speed.
carbon_tube_internal

CARBON FIBER TUBE AND TRANSMISSION

Ultra durable and lightweight made from high quality carbon fibers.
clamp_lock

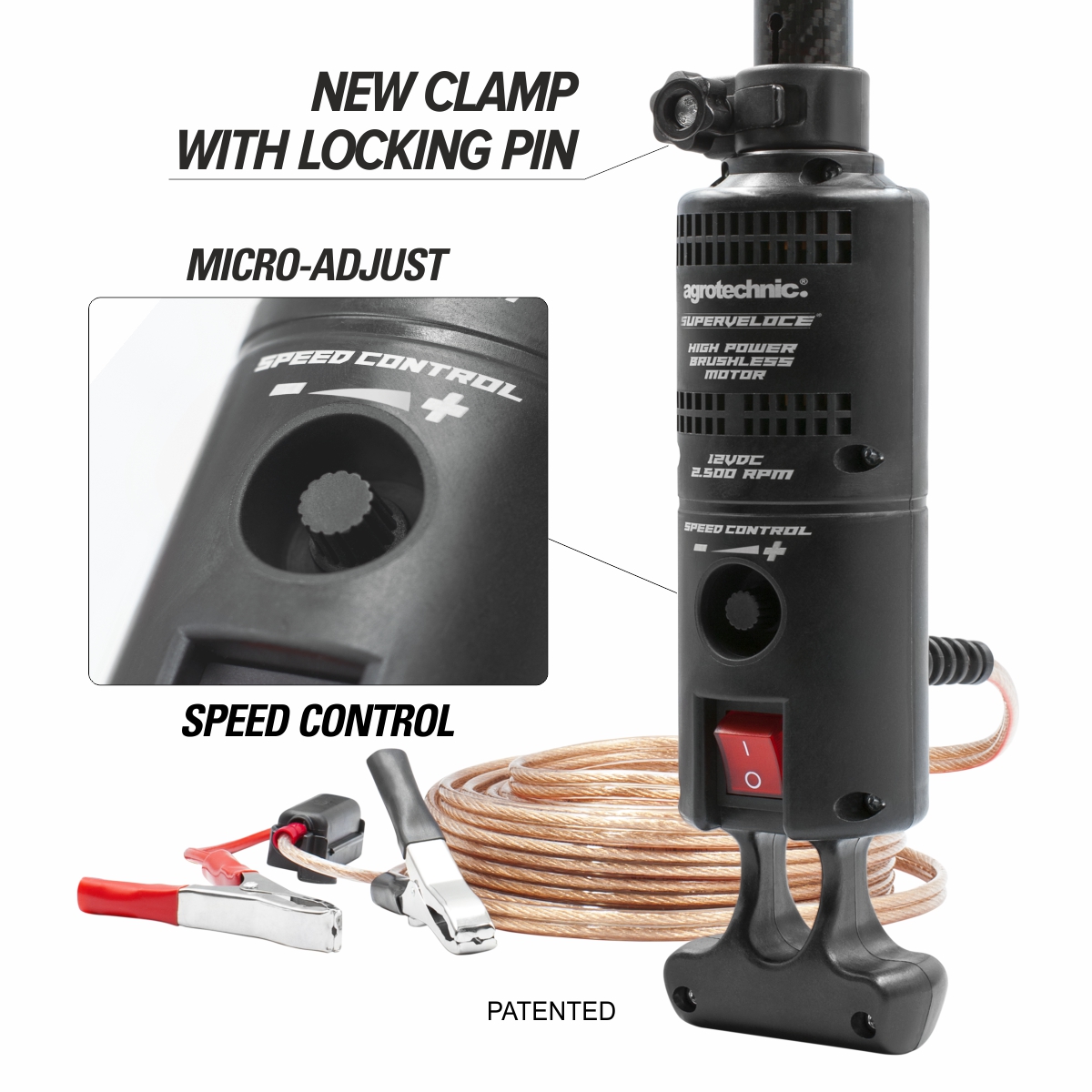

LOCKING CLAMP

Holds the motor with the tube with a locking pin.

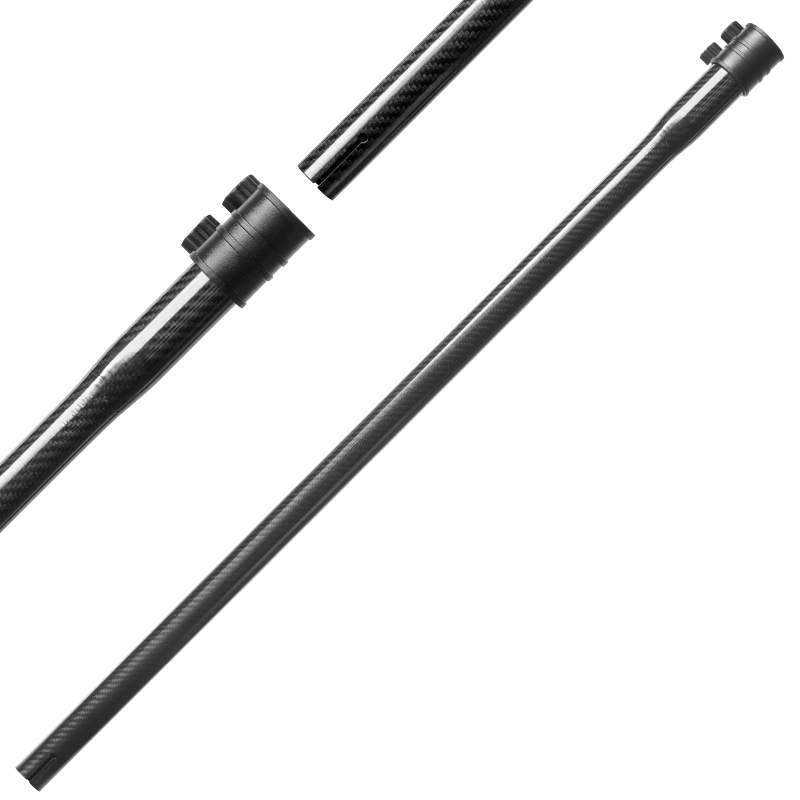

EXTENSION-CF-1M

EXTENSIBLE

Optional carbon fiber extensions, available in lengths of 0.5m-0.75m-1.0m
agrotechnic_olive_harvesting

ERGONOMIC DESIGN

Antivibrational to the operator. Due to the motion with smooth operation and the elastic material of the sticks, it does not transmit vibrations to the operator. It is lightweight with low center of gravity. Very easy to operate.
2 YEARS WARRANTY

2 YEAR WARRANTY

CE

IN CONFORMITY WITH THE EU DIRECTIVES

Manufactured according to the standards and regulations of the European Union. Carries the CE mark.

VIDEO

Click on the image to start the video
Choose HD for high quality.

TECHNICAL SPECIFICATIONS:

Description
Type of movement Roto-vibration
Type of head X.QUATTRO 4D with elastic thermoplastic spheres carrying 32 carbon fiber sticks
Rpm of the head 2.500 rpm @ 12V DC
Motor High power brushless motor 12VDC 1000 Watt
Output 280/350kg olive seed/hour (minimum)
Initial length 2.40m (up to 2.9-3.4m with extension)
Weight 2.5kg (without cable)
Extension Optional extension 0.50m, 0.75m or 1.0m (with transmition shaft)
Cable length 14m fused with alligator clips for battery use
Average consumption 9A @ 12VDC - 2.500 Rpm (at max. speed)
Noise levels 54dB @ operator level

FREQUENTLY ASKED QUESTIONS

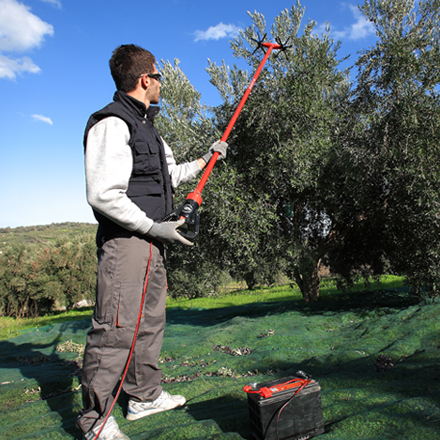

Yes, the X.QUATTRO SUPERVELOCE is designed for professional use with a regular car battery 12VDC. An 80Ah battery, has operating time of 8 hours continuous operation. Deep cycle batteries are ideal.
The elastic spheres/ carbon sticks wear out evenly with the passing of the olive harvesting periods. The frequency of replacement depends on the type of the olive trees and the time period of harvesting. The average frequency is 3-4 years. They change without special tools.
The machine doesnt need special maintenance. Apply grease spray externaly to the rotating parts of the head before the operation of the day. Every 100 Hours lubricate the roller guides of the transmission shaft.
